TSB-150

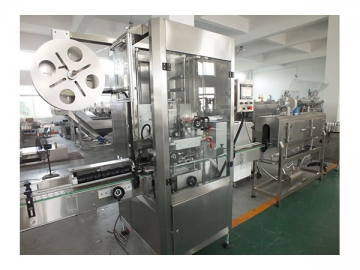

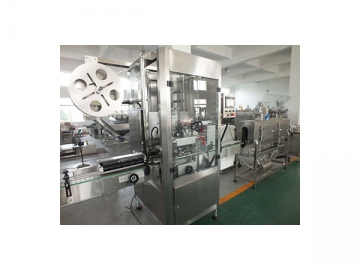

The TSB-150 automatic shrink sleeve labeler cuts and fixes labels to round bottles using a heat shrinking method. This shrink sleeve labeling machine is widely used to label beer, sodas, and other beverages as well food, cosmetics, pesticides, and chemicals.

Main performance parameters:
1. Production efficiency: <150bottles/min
2. Input power: 2KW
3. Input voltage: 380V/220V AC
4. Size of host machine: L2000mm*W900mm*H1900mm
5. Weight: 400kg
6. Diameter of bottle body: Φ28mm-Φ100mm
7. Length of label: 30mm-220mm
8. Thickness of label: 0.03mm-0.13mm
9. Internal diameter of paper tube: 5" - 10" free adjustment
10. Heating shrinking oven power: 4-6kw
11. Contour sizes: 5000 x 880 x 2580mm

Features:
1. Made of SUS304 stainless steel to prevent rusting
2. Smooth and quick cutting and easy blade replacement
3. Quick changing tools for different bottle sizes or label positioning
4. Frequency control for stable conveyance and precise labeling
5. Low error rate of the bottle labeler
6. Easy to use touch screen and servo synchronous control technology
7. Suitable for round and square bottles

Choose this labeling machine if:

    The label is made of plastic film.

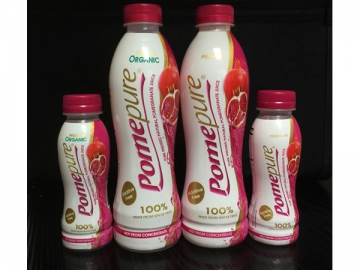

    Suitable bottles:
    Configuration
    No. Name Brand Manufacturer
    1 SUS304 stainless steel South Korea
    2 Electric motor TWT Taiwan
    3 Bearings NSK MNB EZO IJK Japan
    4 Servo motor Panasonic Japan
    5 Servo Driver Panasonic Japan
    6 PLC programmable controlling machine Panasonic Japan
    7 Frequency converter TELTA Taiwan
    8 Touch screen OMRON Japan
    9 Contacor SCHNEIDE France
    10 Transducer SUNX Japan
