Features
The tube bundle dryer is an indirectly heated, contact type drying machine that can perform both parallel flow and counter-flow drying. To evaporate one kg of water, it only consumes 1.5 to 2kg of team, 50% less than fluidizing dryers. Drying one ton of fermented grass powder only consumes 15kW/hr, 75% less than a fluid bed dryer. This series of drying equipment is extremely efficient and highly automated.

Technical Paramenters
Specification speed of rotation (rpm) main machine power (kw) heat exchange area (m2) drying capacity (evaporate kg of water/m2h) overall dimension (L*W*H)(mm) weight (t)
GZG50 5-8 5.5 50 4.7 8032x1712x2250 9.0
GZG100 5-8 7.5 100 4.7 9100x1912x2470 14.0
GZG150 5-8 11 150 4.7 8500x2212x2810 18.5
GZG200 5-8 11 200 4.7 10000x2212x2810 20.0
GZG250 5-8 15 250 4.7 10200x2212x2810 23.0
GZG300 5-8 22 300 4.7 10784x2488x3383 26.0
GZG350 5-8 30 350 4.7 12048x2488x3383 28.0
GZG400 5-8 30 400 4.7 13048x2488x3383 30.0
GZG500 5-8 45 500 4.7 11298x2982x3965 40.0
GZG600 5-8 75 600 4.7 12298x2982x4165 45.0
GZG700 5-8 75 700 4.7 13298x2982x4365 51.0
Features of Materials
Normal material light industry Water contents before the entering the machine Water contents of dry product Drying strength evaporation kgh2o/m2h Energy consumption
(kj/evaporate kg of water)
Straw 55% 3-5% 2.5-3 3500-3800
(kj/evaporate kg of water)
(840-910 < LCal/evaporater kg of water > )
< amount to about 1.45-1.50 kg of standard saturated steam >
Corn fibre 60% 10-12% 4.8
Fermented grass power 45% 12-13% 4.7
Wooden piece and wooden chip 20% 2-3% 4.3
Potato fibre 65% 10-12% 4.8
Distiller's grains for beer or spirit 65% 10-12% 4.9
Feed carrier 16% 6-8% 4.2
Rape seed 60% 5-7% 4.5
Pig blood fermented power 35% 10% 4.4
Bone power 40% 10% 4.6

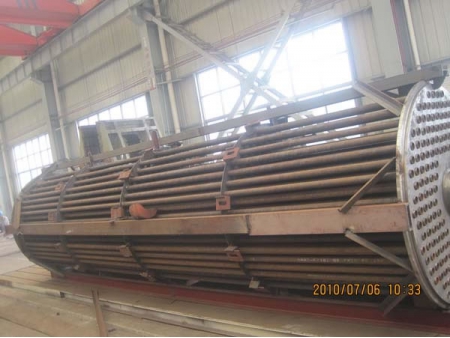

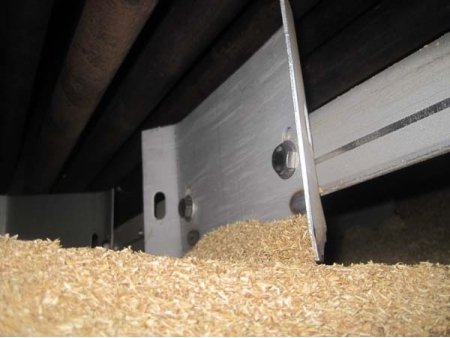

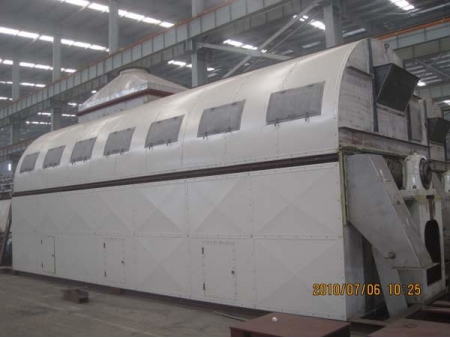

Detailed Images
