The motor-in-head concrete vibrator is an upscale vibration equipment for concrete compaction. This concrete vibrator has advantages of high frequency, high efficiency, and low noise. The voltage of its driving motor is 42 V, so it must be connected to a frequency converter. This high frequency concrete vibrator is prominent in a high level of safety.

Motor-in-head concrete vibrators are recommended for operations in areas have high requirements regarding construction environment or labor protection, such as countries in Europe and Southeast Asia.

Design Principle

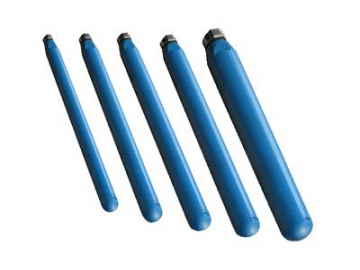

Vibrating poker head of motor-in-head concrete vibrator

As the name suggests, motor-in-head concrete vibrator has a built-in motor placed in poker head, so that the motor can directly drive the eccentric shaft to produce vibration. In this process, there is no loss of torque, so the vibration efficiency is higher and its noise is lower.

Optional Models
150Hz Three-phase frequency converter rigid shaft type vibrating poker head
ZJB Series, 150Hz Three-phase Frequency Converter ZDN Series, Vibrating Poker Head (Rigid Shaft)
Model Capacity (kVA) Input (Ph/Hz/V/A) Output (Ph/Hz/V/A) Model of poker head Number of poker head Poker head diameter (mm) Vibration frequency (vpm) Amplitude (mm) Centrifugal force (kN)
ZJB150/165/4 16.5 3/50/380/24 3/150/48/230 ZDN125 4 125 9000 3.4 20
ZJB150/85/2 8.5 3/50/380/11.6 3/150/48/102 ZDN125 2 125 9000 3.4 20
ZJB150/60/2 6 3/50/380/9.2 3/150/48/72 ZDN100 2 100 9000 3.2 13
ZJB150/60/1 6 3/50/380/9.2 3/150/48/72 ZDN125 1 125 9000 3.4 20
200Hz Three-phase frequency converter rigid shaft type vibrating poker head
Model Capacity (kVA) Input (Ph/Hz/V/A) Output (Ph/Hz/V/A) Model of poker head Number of poker head Poker head diameter (mm) Vibration frequency (vpm) Amplitude (mm) Centrifugal force (kN)
ZJB200/185/10 18.5 3/50/380/24 3/200/48/252 ZDN85 10 85 12000 1.6 6.6
ZJB200/85/5 8.5 3/50/380/16 3/200/48/115 ZDN85 5 85 12000 1.6 6.6
ZJB200/45/2 4.5 3/50/380/8.3 3/200/48/54 ZDN85 2 85 12000 1.6 6.6
ZJB200/30/1 3 3/50/380/5.1 3/200/48/36 ZDN85 1 85 12000 1.6 6.6
200Hz Three-phase frequency converter flexible shaft type vibrating poker head
ZJB Series, 200Hz Three-phase Frequency Converter ZDN Series, Vibrating Poker Head (Flexible Shaft)
Model Capacity (kVA) Input (Ph/Hz/V/A) Output (Ph/Hz/V/A) Model of poker head Number of poker head Poker head diameter (mm) Vibration frequency (vpm) Amplitude (mm) Centrifugal force (kN)
ZJB200/45/4 4.5 3/50/380/8.3 3/200/48/54 ZDN60 4 60 12000 2.2 4.5
ZJB200/45/3 4.5 3/50/380/8.3 3/200/48/54 ZDN70 3 70 12000 1.6 5.8
ZJB200/30/3 3 3/50/380/5.1 3/200/48/36 ZDN60 3 60 12000 2.2 4.5
ZJB200/30/2 3 3/50/380/5.1 3/200/48/36 ZDN70 2 70 12000 1.6 5.8
ZJB200/18/3 1.8 3/50/380/3.4 3/200/48/23 ZDN35 3 35 12000 1.8 1
ZJB200/18/2 1.8 3/50/380/3.4 3/200/48/23 ZDN60 2 60 12000 2.2 4.5
ZJB200/18/1 1.8 3/50/380/3.4 3/200/48/23 ZDN70 1 70 12000 1.6 5.8
ZJB200/12/2 1.2 3/50/380/2.2 3/200/48/15 ZDN35 2 35 12000 1.8 1
ZJB200/12/1 1.2 3/50/380/2.2 3/200/48/15 ZDN60 1 60 12000 2.2 4.5
200Hz Single-phase frequency converter flexible shaft type vibrating poker head
ZJB Series, 200Hz Single-phase Frequency Converter ZDN Series, Vibrating Poker Head (Flexible Shaft)
Model Capacity (kVA) Input (Ph/Hz/V/A) Output (Ph/Hz/V/A) Model of poker head Number of poker head Poker head diameter (mm) Vibration frequency (vpm) Amplitude (mm) Centrifugal force (kN)
ZJB200/25/2-D 2.5 1/50/220/5.7 3/200/48/25 ZDN35 2 35 12000 1.8 1
ZJB200/25/1-D 2.5 1/50/220/5.7 3/200/48/25 ZDN60 1 60 12000 2.2 4.5
ZJB200/11/1-D 1.1 1/50/220/2.8 3/200/48/11 ZDN35 1 35 12000 1.8 1
Diesel engine frequency converter flexible shaft type vibrating poker head
Model Capacity (kVA) Output (Ph/Hz/V/A) Model of poker head Number of poker head Poker head diameter (mm) Vibration frequency (vpm) Amplitude (mm) Centrifugal force (kN)
ZJB200/25/2-C 2.5 3/200/48/30 ZDN50 2 50 12000 2 3.5
ZJB200/25/1-C 2.5 3/200/48/30 ZDN70 1 70 12000 1.6 5.8
Gasoline engine frequency converter flexible shaft type vibrating poker head
ZJB Series, Gasoline Engine Frequency Converter ZDN Series, Vibrating Poker Head (Flexible Shaft)
Model Capacity (kVA) Output (Ph/Hz/V/A) Model of poker head Number of poker head Poker head diameter (mm) Vibration frequency (vpm) Amplitude (mm) Centrifugal force (kN)
ZJB200/25/2-Q 2.5 3/200/48/30 ZDN50 2 50 12000 2 3.5
ZJB200/25/1-Q 2.5 3/200/48/30 ZDN70 1 70 12000 1.6 5.8
Electronic frequency converter flexible shaft type vibrating poker head
ZEB Series, Electronic Frequency Converter ZDN Series, Vibrating Poker Head (Flexible Shaft)
Model Capacity (kVA) Input (Ph/Hz/V/A) Output (Ph/Hz/V/A) Model of poker head Number of poker head Poker head diameter (mm) Vibration frequency (vpm) Amplitude (mm) Centrifugal force (kN)
ZEB200/165/10 16.5 3/50/380/14 3/200/48/136 ZDN50 10 50 12000 2 3.5
ZEB200/165/6 16.5 3/50/380/14 3/200/48/136 ZDN65 6 65 12000 2.4 5.5
ZEB200/68/4 6.8 3/50/380/6.0 3/200/48/80 ZDN65 4 65 12000 2.4 5.5
ZEB200/56/3 5.6 3/50/380/5.5 3/200/48/65 ZDN65 3 65 12000 2.4 5.5
ZEB200/30/2 3 3/50/380/4.5 3/200/48/36 ZDN50 2 50 12000 2 3.5
