Fine Pitch LED Display Manufacturer

Fine Pitch LED Display

Request a Quote

About Us: http://ledlcd-display.com/1-5-fine-pitch-led-display.html

Frida’s fine pitch LED display has lower pixel pitches and more pixels per unit, thus images and videos will be clearer, allowing viewers a more enjoyable experience at a closer viewing distance. The display is suitable for commercial exhibitions, product promotion events, TV studios, and more.

Parameter

Model	Pixel Pitch (mm)	Cabinet Resolution	Module Size(mm)	LED Configuration	Brightness (CD/㎡)
P1.25	1.25	320*240	200*150	SMD1010	200-800
P1.45	1.45	440*248	160*180	SMD1010	200-800
P1.56	1.56	384*216	150*168	SMD1010	200-800
P1.667	1.667	288*288	240*240	SMD1010	200-800
P1.875	1.875	320*180	150*168	SMD1515	200-1200
P2.0	2.0	200*150	200*300	SMD1515	200-1200
P2.5	2.5	160*120	200*300	SMD2121	200-1000

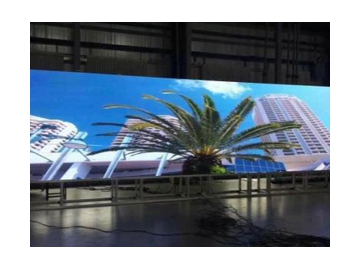

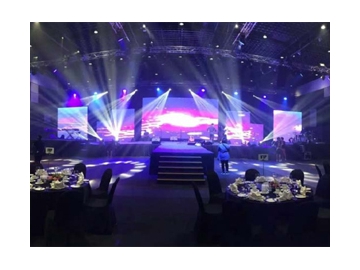

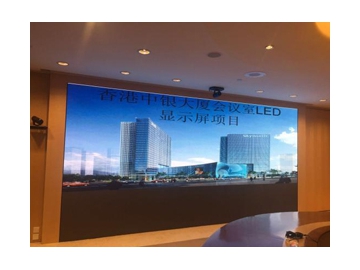

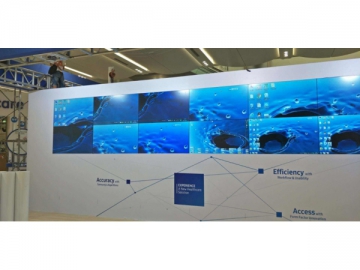

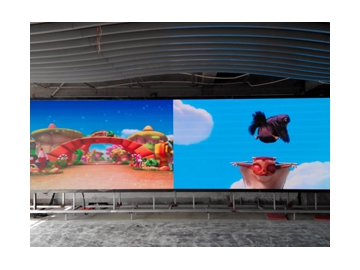

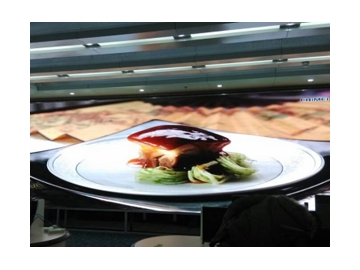

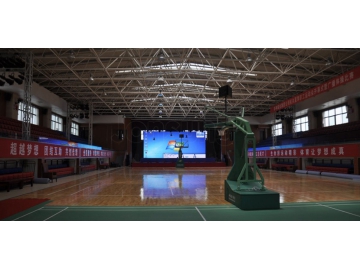

Photo Gallery

Display

High contrast ratio and grayscale calibration can help it display clear and vivid images.
It can be seamlessly assembled into a flat screen, ensuring the image is not distorted.
The calibration feature ensures color and brightness consistency during usage.
The special design of matte black light bulbs and matte black covers improve its contrast ratio into 5000:1.
Its intelligent brightness adjustment related to ambient light stabilizes the display performance.
The high-quality LED wafers ensure an overall stability.

Structure

The fine pitch LED display can be installed into a seamless HD video wall with an easy flexibility. It is able to effectively cope with different application fields.
6kg lightweight and 45mm slim design makes it easy to assemble, teardown and transport.
It has good heat dissipation with cabinet of die casting aluminum alloys.
Aviation connector ensures high quality and safety.
