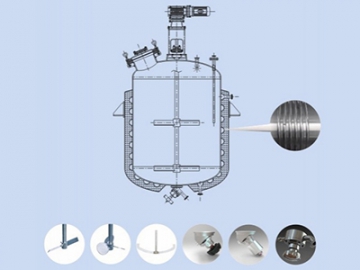

Mechanical stirrer tank
Magnetic stirrer tank

The mixing tank is an ideal equipment used for liquid mixing, especially suitable for the purification of pharmaceutical products with uniform concentration in the tank. NJR provides stainless steel mechanical stirrer tank and magnetic stirrer tank.

Features of stainless steel mixing tank

Adopt 316L or 304 stainless steel to make the tank with interior precision polish finish while the outer surface is all-welding stainless steel plate.
There is hydrophobic filter used for gas filtration with pore size of 0.2μm
With the magnetic stirrer to mix on a low level near the bottom of the tank. It can use the driver gear outside the tank to drive the passive gear to rotate in the magnetic field so that there is no friction between the gear and bearing. Hence, it avoids the pollution caused by the mechanical stirrer.

Common specifications

Specification (L)	Inner tank diameter(mm)	Jacket diameter(mm)	Insulating layer diameter (mm)	Motor power(kW)	Stirring speed(rpm)
30	300	350	450	0.6-1.1	60-120
50	400	450	550	0.6-1.1	60-120
100	500	550	650	1.1-1.5	60-120
150	550	600	700	2.2	60-120
200	600	650	750	2.2	60-120
300	700	750	850	2.2	60-120
500	800	900	1000	2.2	60-120
800	1000	1100	1200	4	60-120
1000	1000	1100	1200	4	60-120
1500	1100	1200	1300	4	60-120
2000	1250	1350	1450	4	60-120
2500	1400	1500	1600	7.5	90-120
3000	1500	1600	1700	7.5	90-120
3500	1400	1500	1600	7.5	90-120
4000	1600	1700	1800	7.5	60-120
5000	1900	2000	2100	7.5	60-120
6000	1900	2000	2100	15	100-120
8000	2000	2100	2200	15	100-120
