Return Filters
Request a Quote

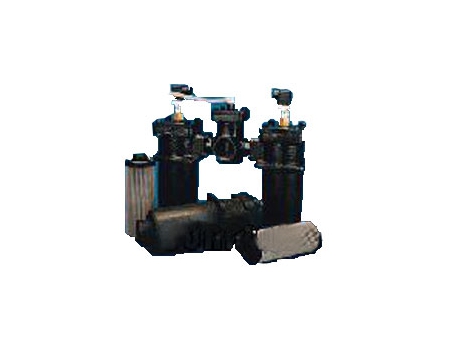

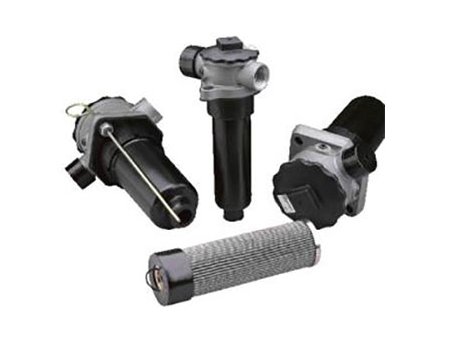

The return filters are designed for fine filtration of the return oil in hydraulic systems. They can keep the return oil clean by removing the outside contaminants or progressive contamination caused by the wear of components, such as fibers, slag, rubber particles of sealing wear and metal particles of parts wear.
Features
- The return filters can be directly mounted on the oil tank top or the pipeline.
- This return filter is equipped with clogging indicator and bypass valve to improve the safety and reliability of the hydraulic system. Once the fluid inlet pressure turns into 0.35Mpa, which caused by the clogging of the filter element, flow pulsation or low temperature of the hydraulic fluid, the clogging indicator will send a signal for cleaning the filter element or improving the fluid temperature. If these problems haven’t been solved in time, the bypass valve will automatically open (opening pressure: 0.4MPa).

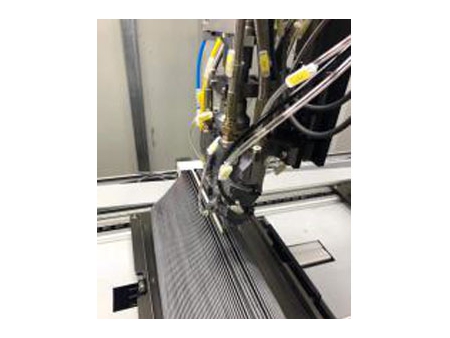

- The fiberglass filter element features high filtration rating, large flow rate, low pressure drop and high dirt holding capacity. The filtration rating is rated by filtration ratio and efficiency. (ISO standard: filtration ratio β: 3, 5, 10, 20 >200; filtration efficiency n≥99.5%)
Technical Specifications
- Flow rate: 60L/min;
- Operating pressure: 0.7MPa;
- Opening pressure of bypass valve: 0.25MPa;
- Filtration rating: 20um
Model Specifications
Filter Model | Nominal Flow Rate (L/min) | Filtration Rating (μm) | Diameter(mm) | Pressure Drop(MPa) | Clogging Indicator | Weight (Kg) | Filter Element Model | ||
Initial | Max. | (V) | (A) | ||||||
RF-60×*L- | 60 | 1 3 5 10 20 30 | 20 | ≦0.07 | 0.35 | 12 24 36 220 | 2.5 2 1.5 0.25 | 0.4 | HL0060R*BN/HC |
RF-110×*L- | 110 | 0.9 | HL00110R*BN/HC | ||||||
RF-160×*L- | 160 | 40 | 1.1 | HL001600R*BN/HC | |||||
RF-240×*L- | 240 | 1.8 | HL00240R*BN/HC | ||||||
RF-330×*L- | 330 | 50 | 2.3 | HL00330R*BN/HC | |||||
RF-500×*L- | 500 | 3.2 | HL00500R*BN/HC | ||||||
RF-660×*L- | 660 | 80 | 4.1 | HL00660R*BN/HC | |||||
RF-850×*L- | 850 | 13 | HL00850R*BN/HC | ||||||
RF-950×*L- | 950 | 90 | 20 | HL00950R*BN/HC | |||||
RF-1300×*L- | 1300 | 100 | 41.5 | HL001300R*BN/HC |
Connections
Model | Dimensions(mm) | ||||||||||||||
B1 | L | L1 | h | D1 | H | D | d | M | B | M1 | t1 | m | t3 | DN | |
RF-60×*L- | 90 | 166 | 92 | 11 | φ80 | 34 | φ100 | φ5.5 | M27×2 | 48 | M27×2 | 16 | |||
RF-110×*L- | 233 | 159 | M33×2 | M33×2 | |||||||||||
RF-160×*L- | 120 | 209 | 120 | 11 | φ106 | 40 | φ135 | φ7 | M48×2 | 66 | M48×2 | 20 | |||
RF-240×*L- | 268 | 179 | M48×2 | M48×2 | |||||||||||
RF-330×*L- | 152 | 271 | 138 | 13 | φ135 | 63 | φ170 | φ9 | M60×2 | 85 | M60×2 | 27 | |||
RF-330×*F- | M60×2 | M12 | 23 | φ50 | |||||||||||
RF-500×*F- | 351 | 218 | |||||||||||||
RF-660×*F- | 411 | 243 | 13 | φ175 | 83 | φ220 | φ13.5 | 110 | M16 | 22 | φ80 | ||||
RF-850×*F- | 492 | 324 | |||||||||||||
RF-950×*F- | 449 | 251 | 14 | φ208 | 93 | φ290 | φ17.5 | 135 | 22 | φ90 | |||||
RF-1300×*F- | 573 | 332 | 121 | 145 | φ100 |
