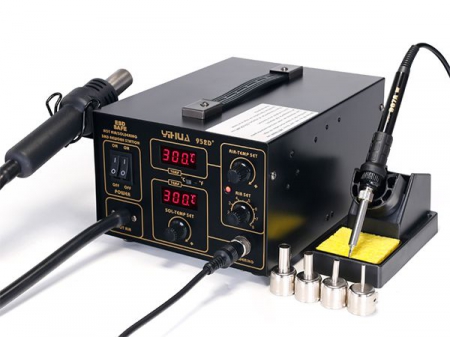

Diaphragm Pump Type Hot Air Soldering Rework Station, Item WEP-952D

Diaphragm Pump Type Hot Air Soldering Rework Station, Item WEP-952D
Request a Quote

Description
The 952D rework station adopts an air pump with small airflow rate of 24~28L/min. It is matched with a small-diameter air source; the gentle hot air is good for small IC components or other components without blowing them away.

Other than that, the air pump has enough pressure to un-choke the joint between the hot air gun and air nozzle in case the equipment is damaged by hot air blockage.

Technical Parameters
Item 952D
Power ≤700W
Work Environment 0~40°C/32~104°F
Storage Environment -20~80°C/-4~176°F
Storage Humidity 35%~45%
Hot air gun
Diaphragm Pump Diaphragm pump
Airflow ≤24L/min
Temperature Range 100~480℃
Temperature Stability ±1°C
Display LED
Wire Length ≥90cm
Soldering iron
Temperature Range 200~480℃
Temperature Stability ±2°C
Tip of ground voltage <2mV
Tip ground impedance <2ohm
Display LED
Wire Length ≥100cm
