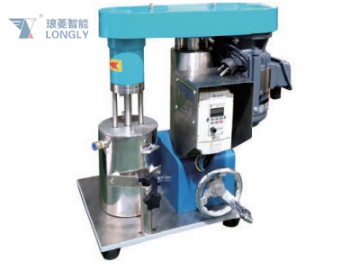

Submersible Basket Mill, LBM
Request a Quote
Fineness: 5μm-25μm
Solvent: water-based, oil-based
Viscosity: ≤10,000cps
Grinding Bead Size: 1.6-5.0mm
Selectable Materials: wear-resistant alloy steel
Features

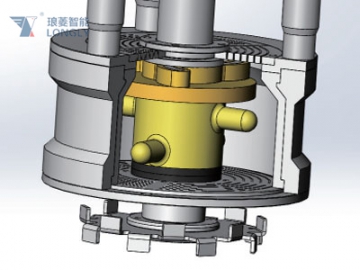

- Individual design of basket rotation makes the grinding machine easyto clean and product changeover, thus saving labor force;
- Grinding chamber is perfectly matched with basket, resulting in ahigh grinding efficiency;
- Drive shaft and basket cover are reliably closed to prevent solventsfrom evaporation;
- Since no pipes, pipes and mechanical seals are necessary, highefficiency and contamination-free production is achieved;
- Suitable for batch-type production of various materials;
Specifications
| Model | Drive Motor (kW) | Batch Capacity (L/H) | Media Size (mm) | Weight (kg) | Lifting Method | Dimension (mm) |
| LBM-T2 | 0.37 | 1-2 | 1.6-5.0 | approx. 70 | Manual/Pneumatic lifting | 450x550x800 |
| LBM-T3 | 3 | 20-35 | 1.6-5.0 | approx. 350 | Hydraulic lifting | 700x1350x1600 |
| LBM-T5 | 7.5 | 40-50 | 1.6-5.0 | approx. 1500 | Hydraulic lifting | 750x1600x1900 |
| LBM-T20 | 22 | 450-500 | 1.6-5.0 | approx. 2000 | Hydraulic lifting | 1300x2700x2900 |
| LBM-T40 | 37 | 850-1000 | 1.6-5.0 | approx. 3500 | Hydraulic lifting | 1550x3300x3700 |
Applications
- Pigment
- Dye
- Ink
- Printing Inks
- Coatings
- Medicine
- Cosmetics
- Color Paste
