Application

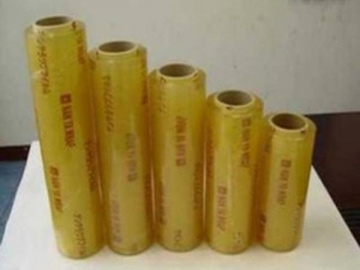

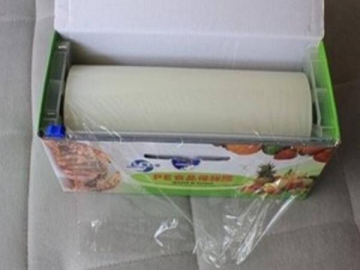

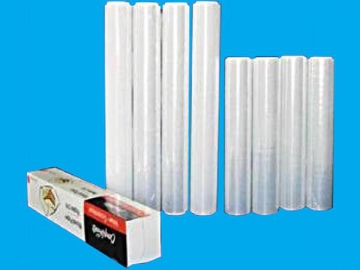

This stretch film rewinding machine is exclusively used to rewind food preservative film and stretch film. This rewinder has high work efficiency by using five shafts to cyclic rewinding and is more suitable for rewinding finished roll about a few meters.

Parameters
Model HTR-C300
Width Of Mother Roll 200-300mm
Width Of Finish Roll 200-300mm
Speed Max8rolls(30m/roll)/min
Mother Roll Diameter Max 500mm
Finish Roll Length Min8m-Max120m
Core Of Mother Roll 3"
Core Of Finish Roll Outside diameter 34-44mm
Line distance Customized,Min150mm
Dimension 1350*1265*1450/mm
Net weight 700KG

Features
1.This rewinding machine has high work efficiency by using five shafts to cyclic rewinding.
2. This machine has control system consisting of PLC, human-computer interface and frequency changer. So this machine has high level of automation.
3. Paper tube bucket alarm without paper tube automatically and chuck can shut down without paper tube automatically.

Wintech has researched and developed the slitter rewinder about 20 years and we have very professional technical team. Our technical staffs all have rich operational experience and can deal with different situations. All types of machine have one year free warranty and except for some particular equipment, we provide the fittings freely to replace the broken ones. In addition, our engineer can go to your workplace if necessary. In order to eliminate both sides' trouble, our machines are all examined more than three times by the professional engineer before sales.
