Request a Quote

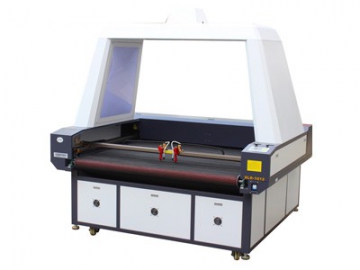

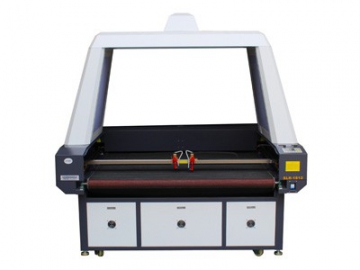

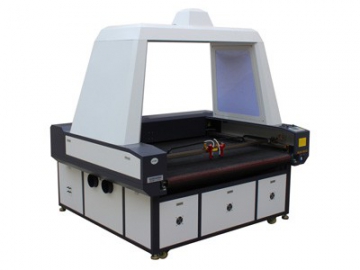

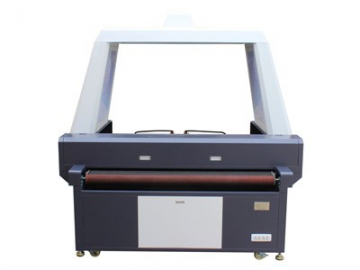

SLR Series CO2 laser cutting machine is special designed using visual recognition technology to automatically cutting large, complex, and irregular patterns. It provides a high precise, high-efficiency and labor-saving cutting solution for various industries such as textile, shoes and bags, building decoration, art and crafts, etc., and has gotten a favorable reception by many clothing industry users.

This machine equipped with 18 million pixels SLR camera which can clearly shot the pattern profile, its intelligence system can shoot, recognize, and cutting quickly, and its total deviation is within ±0.5mm.

Applicable Materials
Non-metallic materials such as leather, PU, fabric, paper, plastic, rubber, etc.

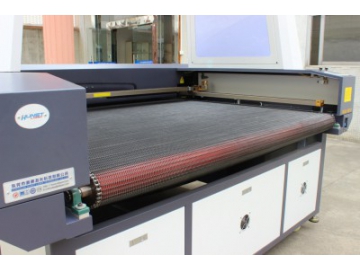

  • Feeding Platform

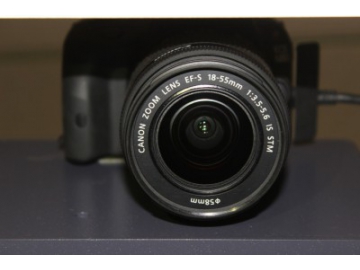

  • Camera

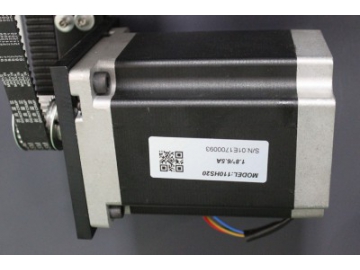

  • Motor
Features
  • It uses SLR camera to automatically locate the workpiece by comparing the camera graphic to the imported blueprint, avoiding the deviation of manual locating.
  • It is a large format cutter which can match and cut the graphic not large than 1.8m at one time, which greatly improve the locating and cutting efficiency.
  • Equipped with wrinkle removal device, which greatly reduce the deformation of the fabric, and it can automatically compensate to pinpoint deformation of the fabric which ensures the accuracy of cutting.
  • Supporting automatically material feeding and cutting, supporting high-speed continuous curve cutting, so it works in a very high efficiency.
  • Automatically tracing the edges after shooting, no premade template is needed, so it is very conveniently.
  • It uses high performance stepper motors or servo motors to ensure stable, precise and quick working.
Technical Parameters
Model SLR-1812
Laser type CO2 glass tube or RF metal laser tube
Effective working travel 1800*1200mm
Laser power 80-180W
Maximum cutting speed 0-36000MM/Min
Maximum engraving speed 0-60000MM/Min
Focal distance 38.1,50.8,63.5,75,100MM
Repeat position accuracy ±0.01MM
Cooling type Water cooling system
Control mode DSP
Acceptable graphic format PLT, DST, AI, DXF, BMP, JPG, CAD, CDR, DWG
Operating voltage AC 110/220V±10%, 50/60Hz
Operating temperature range 0-40℃
Machine power < 2500W
Dimension 2500*2200*2500mm
Weight 900kg
Laser safety classification Class 4
Related Models:
Model Effective working travel Dimension Weight
SLR-1610 1600x1000mm 2300x2000x2450mm 800kg
