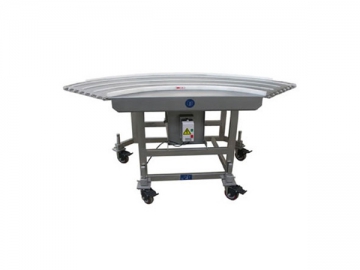

90 Degree Curved Conveyor

90 Degree Curved Conveyor
Request a Quote

Hiwell Machinery 90 degree curved conveyor brings 90° bend in the conveying direction of materials. Our wire belt conveyor is available in width of 600mm and 400mm.

Advantages
1. This 90 degree curved conveyor meets the requirements of IP55.
2. We adopt Siemens electronic components for this 90 degree conveyor system to ensure operation safety.
3. This food processing equipment is typically built from superior stainless steel to meet HACCP requirements.

Technical Parameters of 90 Degree Curved Conveyor
Conveying Speed 3-15m/min
Input Height 1050±70mm
Output Height 1050±70mm
Belt Width 600/400mm
Power 0.25kW
Overall Dimension 2000×876×1050mm

Notes
1. Application voltage environment should be given when making order, so as to choose the proper electric motor.
2. The warranty time for our 90 degree curved conveyor is 1 year, excluding wire belt. We offer charged maintenance services when warranty time is over.
3. Always wearing noise reduction earplug and hygienic uniform. Non-trained personnel are forbidden for machine operation.
