NR Series Winding Machine
Request a Quote
Model: AM-NRRX-10

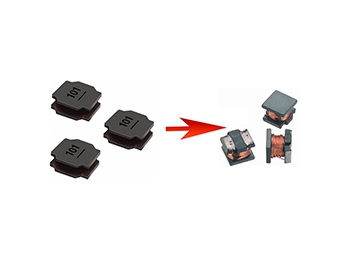

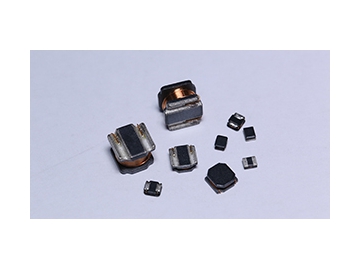

JDL’s NR series winding machine is specially manufactured for the winding of ferrite core inductors. Equipped with side edge soldering function, it supports simultaneous winding and soldering, with a winding speed of 2000rpm. Applicable wire diameter is 0.02-0.12mm. PLC control allows for accurate counting and simple operation. Flexible unloading methods come in discharging in trays or directly.
Product Details:
Technical Parameters
| Application | Ferrite core inductor |
| Feeder | Vibratory bowl feeder |
| No. of spindles | 1 |
| Winding method | Single Winding |
| Wire size | 0.02-0.12mm |
| Max. Winding Speed | 2000rpm/min |
| Control system | PLC |
| Capacity | 1.8-2.2Kpcs/H |
| Dimensions(mm) | L1350*W1300*H1550mm |
| Air supply | 0.5-0.7Mpa |
| Working environment | -5℃-50℃(No corrosive gas, harmful gas, flying dust, etc.） |
| Power supply | Single phase AC220V/50HZ |
| Power consumption | 6.5kW |
| Weight | 650kg |
