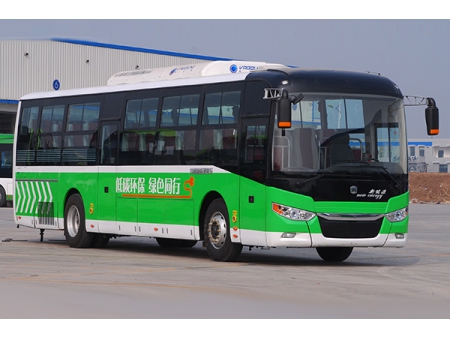

The LCK6125EV coach is well suited for medium-scale and large-scale urban public transportation systems, thanks to its clean appearance, beautiful interior and mature techniques. Its ultra-powerful battery contains 350 Kw·h of electricity, assuring the coach to run over 150 kilometers with the A.C. on and 250 kilometers with the A.C. off. The vehicle receives high praises from countless customers for its excellent dynamic properties, high reliability, high safety, low energy consumption and stable performance.

Overall Parameter
LWH (mm)	1199025003600
Inner height (mm)	2040
Inner width (mm)	2400
Wheelbase (mm)	6000
Front/rear suspension (mm)	2585/3405
Approach/departure (º)	8.5/8.5
Ground clearance (mm)	380
Max. gross weight(kg)	18600
Capacity (seats)	40 1
Turning R(mm)	12200
Max. speed (km/h)	90
Power train system

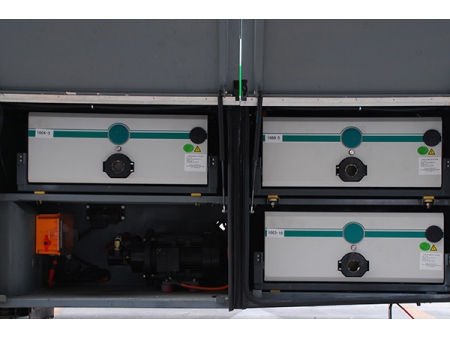

Battery model	Lithium battery
Unit Voltage/capacity	3.2V/20Ah
Total KWH	350
Motor model	Three-phase AC asynchronous motor
Power train type	Direction
Voltage (V)	547.2 (DC)
Rated /Max. power (Kw)	142/230
Rated /Max. torque (N.m)	800/2400
Running distance (km)	At least 250kms. (With Air-on, average speed 70km/h)
Charging type	Slow charging model (3-4 hours, with 120kw charger)
Connector/ Socket type	IEC62196 TYPE-2
Chassis
Front axle	Dena 7 T; disc brake
Rear axle	Dena 13T, drum brake
Suspension	Air suspension 2/4；
Brake	Electric air pumper; dual-circuit air brake; front disc and rear drum brake; air drier; ABS; and rear automatic adjustment arm
Tire	Michelin 295/70R22.5 ×6
Battery	120Ah×2
Motor radiator	Electric fan
Rear view mirror	Electric rearview mirror; inner mirror
Air conditioner	ZHONGTONG 26000Kcal/h
Seats	45 1, ZTZY3072 model, ZTZY1021 adjustable driver seat
