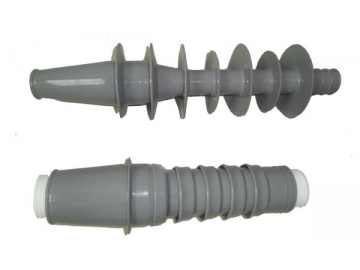

11Kv Heat Shrinkable Cable Accessories
Property Typical data
Ac withstand (under rain) 45Kv/1min
Ac withstand (without rain) 45Kv/1min
Impulse withstand ±105Kv/10times
Dc withstand -52Kv/15min
Ac withstand 35Kv/4h
Partial discharge test ≤10PC(1.73Uo)
24Kv Heat Shrinkable Cable Accessories
Property Typical data
Ac withstand (under rain) 56Kv/1min
Ac withstand (without rain) 56Kv/1min
Impulse withstand ±125Kv/10times
Dc withstand -96Kv/15min
Ac withstand 48Kv/4h
Partical discharge test ≤10PC(1.73Uo)
36Kv Heat Shrinkable Cable Accessories
Property Typical data
Ac withstand (under rain) 117Kv/1min
Ac withstand (without rain) 117Kv/1min
Impulse withstand ±250Kv/10times
Dc withstand -156Kv/15min
Ac withstand 104Kv/4h
Partical discharge test ≤10PC(1.73Uo)
LV Heat Shrinkable Cable Accessories
Property Typical data
Hardness 80(Shoea A)
Tensile strength 12Mpa
Elongation at break 300%
Dielectric strength ≥20Kv/mm
Ac voltage withstand 2.5Kv
Shrink temperature 120~140℃
Shrink ration (dia) 250%
Longitudinal shrinkage ±5%
