Pneumatic Rock Drill Manufacturer

Pneumatic Rock Drill

Request a Quote

About Us: http://ksdrillrig.com/11-4-pneumatic-rock-drill/177061/index.html

The pneumatic rock drill is a small rock crusher. It can be used for crushing or drilling concrete, frozen earth, rock, and so on in many industries like mining, road construction, soft rock exploiting, ditching, building construction, foundry, and so on. As a powerful rock driller, it can drill horizontal, inclined, and vertical blast holes can be drilled in hard or medium hard rock using dry type or wet type drilling methods.

Our pneumatic rock drill is forged by quality material with advanced techniques. So the product features high toughness, high anti-wear performance and great shock resistance. The CNC machine tools are adopted for the manufacturing of the pneumatic rock drill. In addition, the Unicaso automatic production line and thermal treatment can further guarantee the outstanding product quality

We have a microcomputer controlled testbed for the quality test of each product. All the dynamic performance can be determined, avoiding any human mistakes. Thus the consistent quality and excellent performance of each product can be guaranteed.

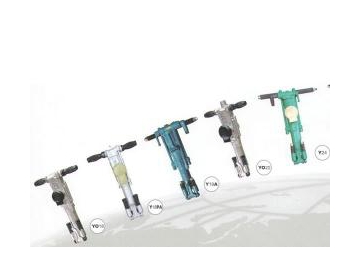

Hand-held pneumatic rock drill

Model	Weight (Kg)	Length (mm)	Cylinder diameter× stroke (mm)	Working air pressure (MPa)	Impact energy (J)	Impact frequency (Hz)	Air consumption (L/s)
YO15	15	550	58×45	0.4-0.63	≥21	≥32	≤20
YO18	18	550	58×45	0.4-0.63	≥22	≥32	≤20
Y19A	19	600	65×54	0.4-0.3-63	≥28	≥28	≤37
YO20	20	561	63×55	0.4-0.63	≥26	≥33	≤33
Y26	26	650	65×70	0.4-0.63	≥30	≥23	≤47

Air leg pneumatic rock drill

Model	Weight (Kg)	Length (mm)	Cylinder diameter× stroke (mm)	Working air pressure (MPa)	Impact energy (J)	Impact frequency (Hz)	Air consumption (L/s)
YT23	24	628	76×60	0.4-0.63	≥65	≥37	≤78
YT23D	24	668	70×70	0.4-0.63	≥65	≥31	≤67

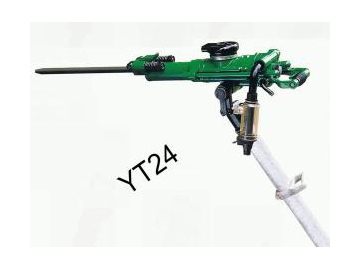

YT24	24	678	70×70	0.4-0.63	≥65	≥31	≤67
ZY24	25	690	70×70	0.4-0.63	≥65	≥30	≤67
YT28	26	661	60 ×60	0.4-0.63	≥70	≥37	≤81
MZ7665	26	720	76×70	0.4-0.63	≥70	≥37	≤81
