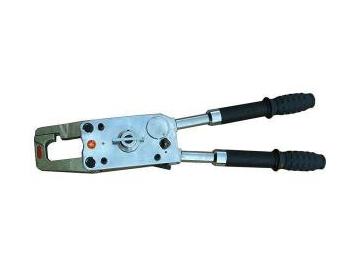

Mechanical Compression Tool

Mechanical Compression Tool
Mechanical Compression Tool
Mechanical Compression Tool
Mechanical Compression Tool
Mechanical Compression Tool
Mechanical Compression Tool
Request a Quote

Main Specifications

Item Number Model Max. Crimping Force (kN) Crimping Methods Scope of Application (mm2) Weight
(kg)
Overall Dimension
(mm)
Copper Terminals
Copper Connecting Pipe
Aluminum Terminals
Aluminum Connecting Pipe
16201 JYJ-Ⅰ 160 Enclose crimping 6~240 4~185 2.5 500×140
×60
16202 JYJ-Ⅱ 180 Enclose crimping 6~300 4~240 3.0 500×140
×60
Overlapped crimping 16~185 35~120
Point crimping 6~240 4~185
16203 JYJ-Ⅲ 200 Enclose crimping 16~400 10~300 3.5 550×150
×60
Overlapped crimping 35~240
Point crimping 16~240 10~185

Notice
Both JYJ-Ⅱ and JYJ-Ⅲ types come with a set of overlapped type dies at random. Other dies are optional.
