Line Stringing Swivel Manufacturer

Line Stringing Swivel

Request a Quote

About Us: http://eastpowermachinery.com/13-3-line-stringing-swivel.html

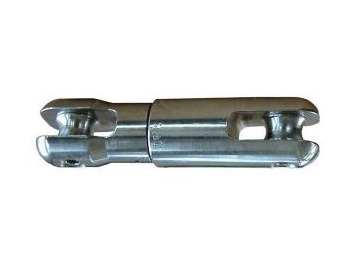

This line stringing swivel is extensively used for the connection of the pulling rope and the mesh sock joint mounted on the conductor. It can prevent the accumulation of torsional strain, which is generally installed on the thrust bearing. In addition, our product is constructed from the galvanized steel with high tensile strength. Thanks to the special design, it can withstand the high radial loads during the passage through the pulleys.

Main Technical Parameters

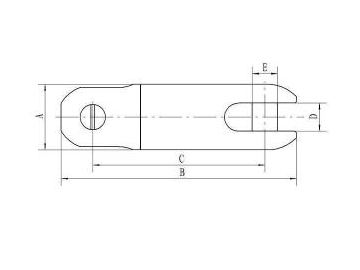

Item Number	Model	Main Dimension (mm)					Rated Load (kN)	Weight (kg)
Item Number	Model	A	B	C	D	E	Rated Load (kN)	Weight (kg)
17121	SLX-0.5	19	61	40	8	9	5	0.2
17122	SLX-1	30	100	70	12	13	10	0.4
17123	SLX-2	35	120	90	14	14	20	0.55
17124	SLX-3	37	129	95	16	16	30	0.65
17125	SLX-5	42	154	116	18	17	50	1.5
17125A	SLX-6.5	51	185	140	20	19	65	2.0
17126	SLX-8	57	220	165	24	22	80	2.4
17127	SL130	62	248	192	26	24	130	3.5
17128	SL180	75	294	222	26	26	180	7.2
17129	SL250	85	331	251	30	30	250	10.6
17130	SL250Y	80	323	243	30	30	250	8.0
17130A	SL320	85	346	264	38	30	320	9.7

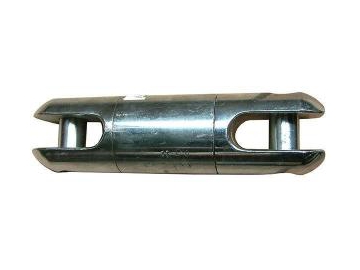

Notes:Model SL80Y and SL250Y are rocking head type, rocking angle≮6°
