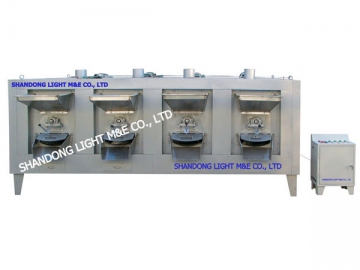

Rotary Drum Roaster
Rotary drum roaster is a type of continuously rotating drying equipment with internal heating and conducting system. Inside the drum, there is a layer of film attached on the drum wall surface. Heat is transferred to the internal wall of the drum through pipes and then to the drum wall and finally the film. The moisture in the materials film evaporates so that the rotary drum roaster dries the materials. Dried products are scrapped out of the drum by the blade fixed on the surface of the drum. Then they fall down onto the spiral conveyor under the blade. The conveyor collects the products and sends them out.
Parameters of Rotary Drum Roaster| Model | LTHG-0506 | LTHG-0812 | LTHG-0816 | LTHG-1020 | LTHG-1220 | LTHG-1424 | LTHG-1624 |
| Drum Size (mm) | d500*600 | 800*1200 | 800*1600 | 1000*2000 | 1200*2000 | 1400*2400 | 1600*2400 |
| Pressure (Mpa) | <=0.6 | <=0.6 | <=0.6 | <=0.6 | <=0.6 | <=0.6 | <=0.6 |
| Power (Kw) | 3 | 3 | 3 | 4 | 4 | 5.5 | 7.5 |
| Thermal Area (Sq.m.) | 1.0 | 2.2 | 4.0 | 6.2 | 7.5 | 10.5 | 12.0 |
| Spinning Speed (r/min) | 0.5-5 | 0.5-5 | 0.5-5 | 0.5-5 | 0.5-5 | 0.5-5 | 0.5-5 |
| Heating Medium | Steam, Thermal Oil | Steam, Thermal Oil | Steam, Thermal Oil | Steam, Thermal Oil | Steam, Thermal Oil | Steam, Thermal Oil | Steam, Thermal Oil |
| Feeding Type | Top, Bottom | Top, Bottom | Top, Bottom | Top, Bottom | Top, Bottom | Top, Bottom | Top, Bottom |
| Remark | According to client's intend capacity, it can be made to use single drum or double drum , feeding from top or bottom. | ||||||

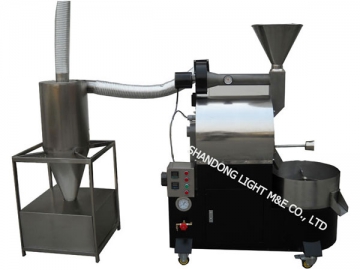

We are a major manufacturer of rotary drum roaster in China. In addition to rotary drum roaster, we can also offer coffee roaster, food extruder, and many other types of food processing machinery. If you need any of our products, please contact us. We are looking forward to cooperating with you.
