Wear Resistant Overlay Welding Plate
Request a Quote
Introduction

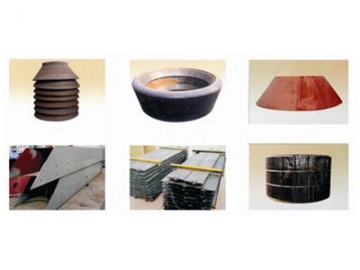

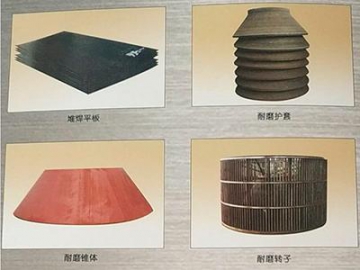

We can provide customers with customized wear resistance overlay welding plate. These wear-resistance accessories including crusher hammerhead, discs on the rotor shaft, impact plate and so on. The highest surface hardness of wear resistance overlay welding plate can be more than HRc65.
Materials: Q235A soft steel plate
Parameters:Product model and chemical composition (％)
| Product model | C | Cr | Si | Mn | others | Hardness(HRC) | |
| ZP50 | 2.5-3.8 | 20.0-25.0 | 0.50-1.50 | 0,50-1.50 | / | ≥50 | |
| ZP55 | 3.0-4.5 | 20.0-25.0 | 0.50-1.50 | 0.50-1.50 | Mo0.5-1.0 | ≥55 | |
| ZP60 | 3.5-4.8 | 20.0-25.0 | 0.50-1.50 | 0.50-1.50 | Mo0.5-1.0 | ≥60 | |
| ZP65 | 4.5-5.5 | 18.0-23.0 | 0.50-1.50 | 0.50-1.50 | Mo1.5-2.0 | ≥65 |
| Product name | Base material | Wearing layer | Overall thickness | Size (L×W) | The minimum radius of curvature |
| ZP50 ZP55 ZP60 | 6 | 4 | 10±1 | 1430×3450 | R≥150 |
| 5 | 11±1 | 1430×3450 | R≥150 | ||
| 6 | 12±1 | 1430×3450 | R≥150 | ||
| 8 | 4 | 12±1 | 1430×3450 | R≥150 | |
| 5 | 13±1 | 1430×3450 | R≥150 | ||
| 6 | 14±1 | 1430×3450 | R≥150 | ||
| ZP50 ZP55 ZP60 | 10 | 4 | 14±1 | 1430×3450 | R≥150 |
| 5 | 15±1 | 1430×3450 | R≥150 | ||
| 6 | 16±1 | 1430×3450 | R≥150 | ||
| 8 | 18±1 | 1430×3450 | R≥300 | ||
| ZP50 ZP55 ZP60 | 12 | 4 | 16±1 | 1430×3450 | R≥150 |
| 5 | 17±1 | 1430×3450 | R≥150 | ||
| 6 | 18±1 | 1430×3450 | R≥150 | ||
| 8 | 20±1 | 1430×3450 | R≥300 |
- The overlay welding plate has high wear resistance, which is 20 times than low carbon steel and 5 times than stainless steel and high manganese steel.
- It has high impact resistance.
- Good processing ability: wear resistance overlay welding plate can be deformed and welded and it can be processed into various kinds of wear-resistance parts conveniently like common steel plates.
- According to different working conditions, we can use welding materials with different alloy components for surfacing welding, which can meet the requirements of various working conditions such as impact, corrosion and abrasive wear.
