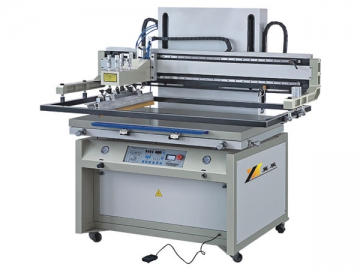

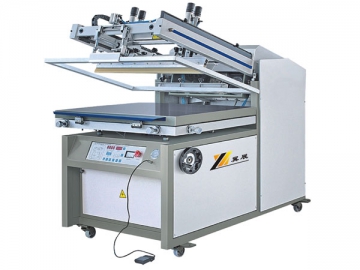

Flat Screen Printing Machine
Request a Quote
About Us: http://printingmachinecn.com
Applications of Flat Screen Printing Machine
SFB-D series flat screen printing machine is applicable in a wide range of packaging industry.
Description of Flat Screen Printing Machine
1. Four-cylinder printing is used, so the printing machine can achieve the effect of pressure on the average printing with clear network lines.
2. It has precise guide "MEGADYNE" belt and can realize inverter-driven printing;
3. High printing precision and stable movement;
4. It is driven by motor, so the printing head movements are straight, fast and smooth.
5. Convenient maintenance of the machine.
| Model | SFB-D6040 | SFB-D9060 | SFB-D12080 |
| Max. Printing Size | 600×400mm | 900×600mm | 1200×800mm |
| Max. Screen Size | 950×600mm | 1200×800mm | 1500×1000mm |
| Pallet Size | 700×500mm | 1100×700mm | 1300×900mm |
| Off-contact | 0-20mm | 0-20mm | 0-20mm |
| Paper Thickness | 100-350g/m2 | 100-350g/m2 | 100-350g/m2 |
| Printing Motor | 1.5Kw | 1.5Kw | 1.5Kw |
| Max. Printing Speed | 1000s/h | 900s/h | 800s/h |
| Weight | 550kg | 3500kg | 4100kg |
| Total Power | 2.45kw | 2.8kw | 3.9kw |
| Dimensions | 1250×980×1620mm | 1620×1190×1680mm | 1830×1290×1680mm |
