We can provide you with 2 kinds of optical post clamps: right angle optical post clamp and adjustable angle optical post clamp. Two optical holders can be mounted on them, but on the first one the two holders must be vertical to each other, on the second one the holders can form any angle.

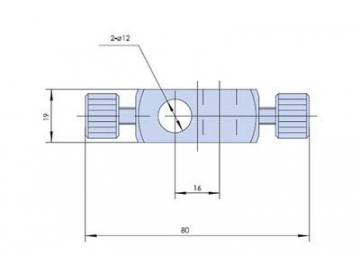

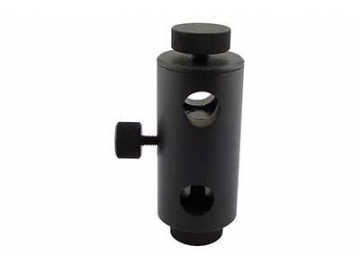

-φ12mm Right Angle Optical Post Clamp

Model WN02CP
Open holes Two orthogonal standard hole (diameter 12mm)
Weight 0.05 kg

Swivel post clamp is used with optical mirror mounts and optical posts. It can combine multiple holder according to the required angle, which is convenient to match the optical path, so it is suitable for the construction of complex optical path.

Features
The post clamp can combine multiple holders together according to the required angle, which is suitable for the construction of complex optical path.

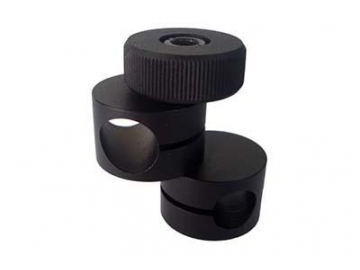

-φ12mm Adjustable Angle Optical Post Clamp

Adjustable angle optical post clamp can rotate 360°, combine the holders together according to the required angle, which is suitable for the construction of complex optical path.

Model WN01CP
Mounting hole 2 360° rotation holes with diameter of 12mm
Weight 0.05 kg
Model A B C(aperture) D(aperture) E Weight
WN01UP12 60 30 12 12 33 0.12 kg
