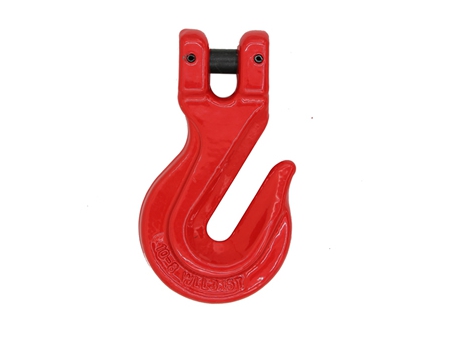

G80 Clevis Grab Hook
Request a Quote
Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

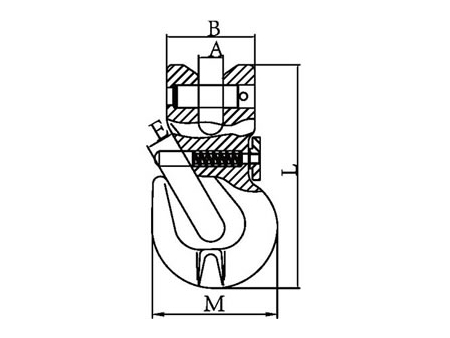

| ITEMNO. | WEIGHT/kg | Working Load Limit (T) | Breaking Load (T) | A±0.5 | B±1.2 | E±0.5 | M±2 | L±2 |
| 8-SLR313-06 | 0.28 | 1.12 | 4.48 | 8 | 32 | 8 | 43.5 | 75 |
| 8-SLR313-7/8 | 0.33 | 2 | 8 | 9.5 | 35 | 11 | 49.5 | 89 |
| 8-SLR313-10 | 0.88 | 3.15 | 12.6 | 12.5 | 42.5 | 13.2 | 70.5 | 126.5 |
| 8-SLR313-13 | 1.85 | 5.3 | 21.2 | 15 | 53 | 16.5 | 90 | 163.5 |
| 8-SLR313-16 | 3.24 | 8 | 32 | 19.5 | 65.5 | 19.2 | 112.5 | 183.5 |
