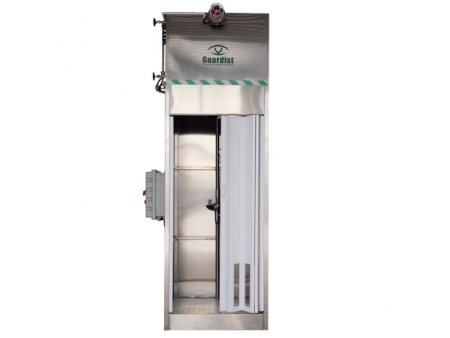

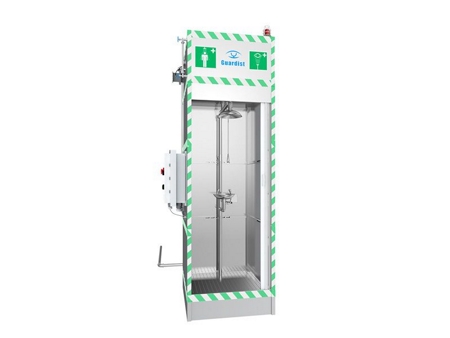

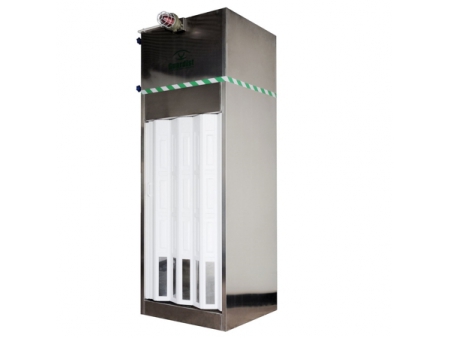

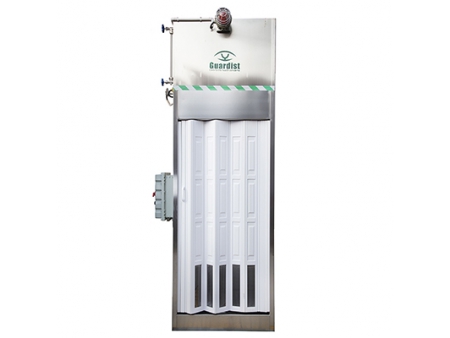

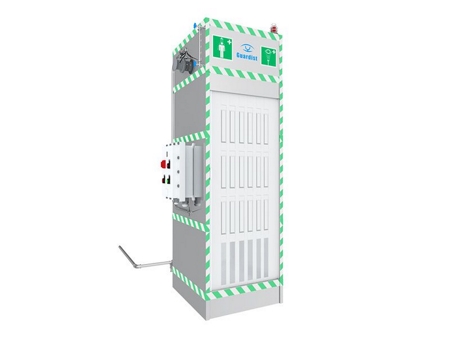

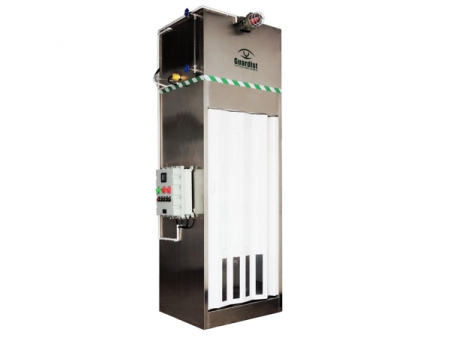

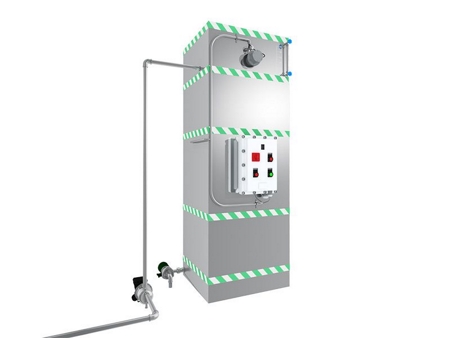

DAAO6604-6 Emergency Shower Station with Alarm

Compliance: ANSI Z 358.1-2016, EN15154.1 / 2: 2006

Features
  • Large space and full functions
  • 304 stainless steel, food grade safety
  • Integral casting, explosion-proof
  • Custom service
  • Adjustable flow rate
Specifications
  • Material: 304 stainless steel (or SS316L stainless steel)
  • Wall thickness: 1.2mm;
  • Pipe wall thickness: 2.5-3mm
  • Water pressure: 0.2 MPa-0.8 MPa
  • Ambient temperature: -35°C -55°C
  • Power supply: 220V / 380V (can be customized)
  • Inlet size: NPT 1 1/4“
  • Drain size: NPT 1 1/4“
  • Flow rate (eyewash): ≥11.4L/ min
  • Flow rate (shower): ≥75.7L/ min
  • Explosion-proof: Exd IICT6
  • Ingress protection: IP65
  • Options: color, material, appearance and size, cooling and heating device, liquid level gauge, booster pump for inlet, sewage pump, explosion-proof, ingress protection, audible and visual alarm, remote wireless alarm

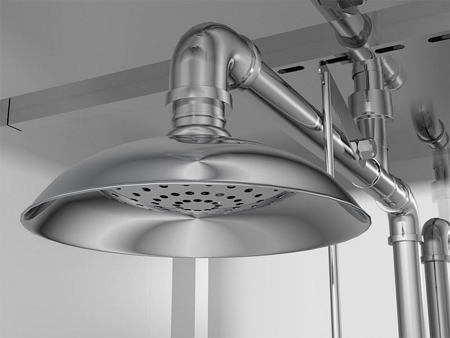

  • Material for shower head and bowl: ABS or stainless steel
  • Installation dimension: 1000 * 900 * 3100mm
  • Tank dimension: 1150 * 1150 * 1200 (can be customized)
Model

As a China emergency safety protection equipment manufacturer with 15 years of experience, DAAO can design its products according to clients’ special needs. You can see our heat traced emergency shower & eyewash units and find the type that you are interested in. If you have any question or custom need, please contact us.
