Horizontal flow wrapper, packing machine with gas flush device
The KCH-320B/320D horizontal flow wrapper packaging machine equipped with a gas flush device is especially suited for packaging baked goods, vegetables, and fruits to extend the shelf-life of these perishable products. Our machine packs the products with high efficiency, allowing you to meet productivity goals and reduce operating costs.

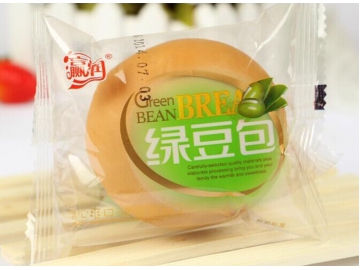

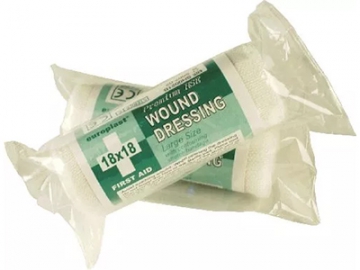

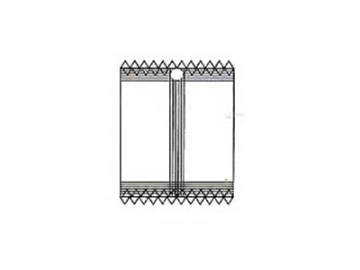

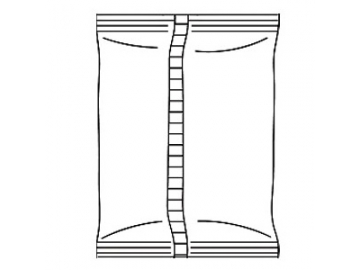

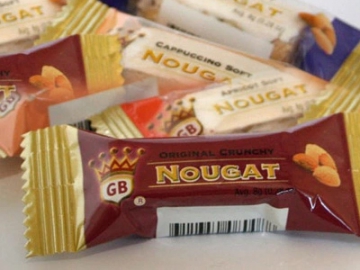

- Pillow bag

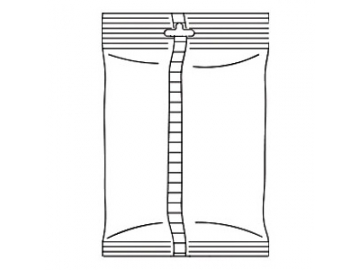

- Pillow bag with euro hole
- Pillow bag with round hole

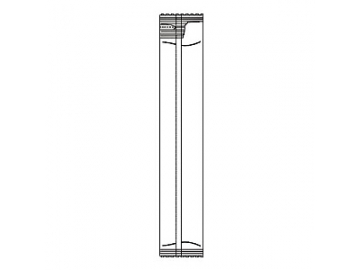

- Stick seal bag

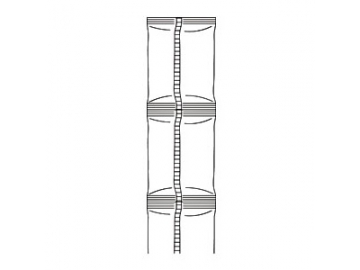

- Linking bag
Model | KCH-320B/320D |
Film width | Max. 320mm |
Bag length | 90-220mm or 150-330mm |
Bag width | 50-160mm |
Product height | Max.60mm |
Film diameter | Max. 320mm |
Packing speed | 40-230 packages / min |
Power supply | 220V, 50/60HZ, 2.6KVA |
Machine dimensions | (L) 3770* (W) 720* (H) 1450 |
Machine quality | 400kg |
Details
![](https://www.etwinternational.com/public/propic/3342/b_2-1-2-flow-pack-wrapper_08b.jpg)
The 7-inch touch screen on the wrapping machine features clear parameters that are easy to set.
![](https://www.etwinternational.com/public/propic/3342/b_2-1-2-flow-pack-wrapper_09b.jpg)
The bag forming unit of the flow-pack wrapper can be freely adjusted, offering users various specifications without having to change the mold.
![](https://www.etwinternational.com/public/propic/3342/b_2-1-2-flow-pack-wrapper_10b.jpg)
The flow-pack wrapper is equipped with an ink roll coding machine for printing dates, marks and other information, and a telescopic film placing device to stretch different packaging film sizes.
![](https://www.etwinternational.com/public/propic/3342/b_2-1-2-flow-pack-wrapper_11b.jpg)
The flow-pack machine has the ability to locate and cut off with no film sticking to the blade, and features a high precision, thus, it will not waste packaging film and will save costs.
