Description

This reflective film features a service life of up to 10 years, with the brightness remaining as high as 80% of the original level after 10 years. It is the second level of reflective film according to GB/T 18833-2002 standards, and is a durable, sealed reflective film that is three times brighter than engineering grade reflective sheeting. The reflective material has often been used for the production of traffic signs, even in areas with bright lights. The highly reflective sign can be clearly seen, warning drivers of various things in advance.

Theory

This reflective film is a new type of reflective materials, and users a special technique to combine the reflective layers formed by glass beads and a polymer material such as PET. It also takes advantage of optics, retro-reflecting light back to the source. By doing so, it acts as a safety/alert signal to the surrounding environment.

Application

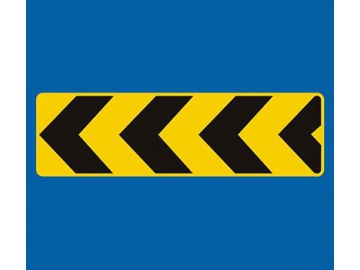

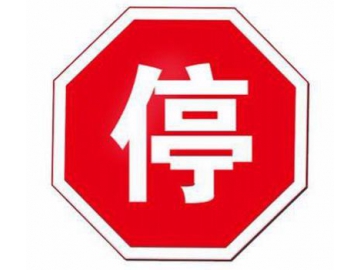

High visibility reflective sheeting is often used in guide signs, warning signs, instruction signs and other main traffic signs, which are then widely used on highways, railways, channels and urban road traffic signs and other transportation like vehicles and ships.

Parameters

Lifetime: 7-10 years

Operating temperature: 18-28°C

Suitable bottom plate: aluminum plate, steel plate

Adhesive: type of pressure sensitive

Colors
Series Type of Adhesive Coefficient of Retro-reflection, Entrance Angle-4°,Observation Angle 0.2°
CY1100/1200 Self-adhesive Standard Value 250 170 100 45 45 20 -12
Self-adhesive Test Value 193 193 120 65 65 27 -18
Custom notes:
  • We provide PET material and Acrylic material for clients to choose from. Reflective films made using PET material cannot be torn, and can be printed with a PET ink silk screen, while reflective films made of acrylic material can be torn, and are easy to print and sculpt.
  • Specification: 1.24m X 45.7m/roll or 2.5-124cm wide.

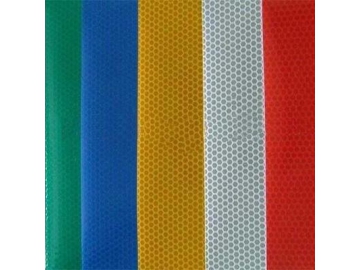

  • Colors: Red/white, black/yellow, red, white, yellow, green, blue, orange, brown and black.
  • Our company, CAIYUAN, has several advanced slitting machines and can cut products to specific customer requirements, such as 62cm×45.7m, 50cm×45.7m, 30cm×45.7m and so on.
