Pipe Temperature Sensor, MJZP

Pipe Temperature Sensor, MJZP
Pipe Temperature Sensor, MJZP
Request a Quote
  • MJZP-N Pipe Temperature Sensor
  • MJZP-O Pipe Temperature Sensor

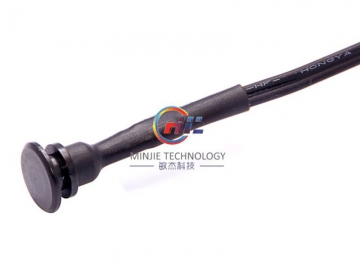

Our self-developed MJZP pipe temperature sensor applies glass encapsulated thermistor as temperature sensing unit, which is assembled into the sensor with high precision, fast response and very good uniformity. Requirement on wire gauge is broadened to under 24AWG, the sensor’s tensile strength is thus enhanced, withstand voltage is promoted to 1800V/DC as well.

Features
  • Tightly sealed for good insulation resistivity;
  • Insulation resistance: ≥100MΩ
  • Working temperature: -40℃~125℃
  • Good stability after long-term operation, good reliability assured;
  • Dissipation constant: ≥ 2.0mW/℃ in still air;
  • Time constant: 1s~2s, very good uniformity;
  • Enhanced tensile strength; withstand voltage 1800V/DC.
Applications

Water heater, fridge, electric kettle, coffee maker, electric iron, bean milk maker, etc.

(Specifications are customizable, please for more details.)
