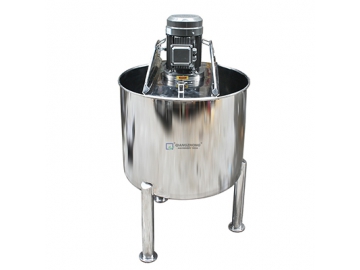

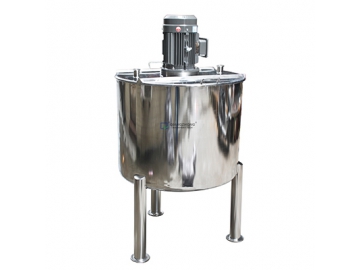

Batch tanks are designed for blending and emulsifying applications in a variety of industries, such as the food, beverage, personal care, pharmaceutical and chemical industry.

Form
Technical Parameters
Volume (L) 100 200 300 500 1000 2000 3000 5000 10000
Power (kW) 2.2 3 4 5.5 7.5 18.5 22 37 55
Nominal Diameter (mm) 550 700 800 900 1200 1400 1600 1800 2300
Speed (r/min) 2800 2800 2800 2800 2800 2800 1400 1400 1400
Operating Pressure (Mpa) atmospheric pressure
Operating Temperature (℃) < 160
