3-Way Ball Valve, Zinc Alloy Handle
Request a Quote
- Working pressure: 450PSI
- Temperature range: -4°to300°F(-20℃ to 150℃)
- Forged brass body, nickel-plated
- Zinc alloy handle

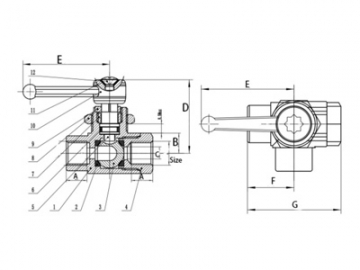

| Part No. | Size | A(In) | B(In) | C(In) | D(In) | E(In) | F(In) | G(In) | Carton Qty. | Wt. (lbs.) |
| 3/8" | 0.47 | 0.43 | 0.39 | 1.57 | 1.89 | 0.94 | 1.89 |
| Part No. | Description | Material |
| 1 | Body | Brass |
| 2 | Seat | PTFE |
| 3 | Ball | Brass |
| 4 | Cap | Brass |
| 5 | Stem | Brass |
| 6 | O Ring | Viton |
| 7 | Nut | Brass |
| 8 | Mounting Nut | Brass |
| 9 | Handle Stopper | Brass |
| 10 | Handle | Zinc alloy |
| 11 | Washer | S.S304 |
| 12 | Screw | S.S304 |
