Automatic Flow Pack Wrapper, Flow Pack Packaging Equipment
The DXD-300Z automatic horizontal flow pack wrapper is designed for products with small pieces attached like sesame cakes, donuts, bagels, and more.
The flow pack packing equipment can accomplish a series of production process. It is suitable for packaging food with attachments because it can prevent the pieces from falling off.
It is an economic packaging production line that is used to wrap arc-shaped products. The maximum film width is 300mm, and the maximum production capacity is 300bags/min.
The pack method of the DXD-300Z is up-film packaging. It is suitable for the packaging of small products. It comes equipped with a rotating cutting head. The cutting operation and packaging operation proceed simultaneously, which improves the production efficiency significantly.
- The machine is made of stainless steel, it can prevent the dust from accumulating on the surface and achieves the best hygienic results.
- The machine has device for film auto-splice, which makes process of packing more smoothly and improves the overall packing efficiency.
- The processes of feeding, forming, filling and sealing are fully automatic. The machine is highly automated, and the labor cost is negligible.
- This machine adopts full servo intelligent controller and runs with low noise.
- The conveyor belt structure is easy to disassemble.
- Automatic discharge device reduces labor costs.
- The packaging machine can effectively reduce the empty bag rate by the function of automatic acceleration and deceleration.
- The machine adopts industrial touch screen, human-machine interface. It intuitively shows the parameter and has the menu operation, which makes operators easier to use.
| Max. Production Capacity | 300bag/min | ||
| Max Width of Film | 300mm | ||
| Max. Dia of Film | Ø380mm | ||
| Shape of products | Round bars | ||
| Packing Range | Length of bag | 40-120mm | |
| Dia | 15-30mm | ||
| Packing Material | PET/CPP and so on | ||
| Gross Power | 6Kw | ||
| Power Supply | 3P/380V/50Hz | ||
| Overall Dimension | 4800×1150×1580mm | ||
| Gross Weight | 1.3T | ||
- Vibrating plate or turntable

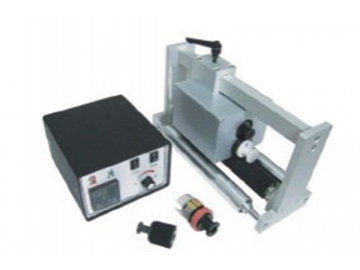

- Date Printer
- Inflatable devices
