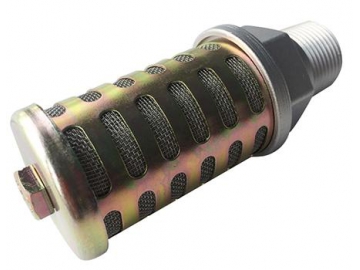

XY Series Muffler
Request a Quote
Adsorption dryers use air exhaust mufflers to reduce noise by gradually reducing the exhaust pressure and attenuating exhaust pressure pulsation. They use a superfine, sound-absorption glass wool with an outstanding sound-absorption performance and high temperature resistance as the main material, as well as combine specially treated sound filter media and other materials. XY Series Mufflers will decrease noise by over 30 dB. Bypass relief valves are equipped, and the operation pressure is 2.0~2.2 kgf/m². If the bypass relief valves open, you must replace the filter material before continuing to use the mufflers. XY Series Mufflers are suitable for 1.0 MPa absorption dryers.
Technical parameters
- Materials: Superfine sound-absorbing glass wool with high temperature resistance
- Noise reduction: ≥ 30db
- Opertion pressure of bypass relief valve: 2.0~2.2kgf/cm2
- Working temperature: ≤65℃
- Max. working pressure: 10bar
Specifications
| Model No. | Connection Size (Z) | Overall Dimension (mm) | ||
| H | h | D | ||
| XY-02 | 1/4" | 112 | 92 | φ46.5 |
| XY-05 | 1/2" | 150 | 125 | φ80 |
| XY-07 | 3/4" | 181 | 156 | φ87 |
| XY-10 | 1" | 219 | 183 | φ99 |
| XY-12 | 1-1/4" | 219 | 183 | φ99 |
| XY-15 | 1-1/2" | 340 | 299 | φ133 |
| XY-20 | 2" | 476 | 432 | φ133 |
| XY-30 | 3" | 593 | 472 | 173×173 |
