Liquid Silicone Rubber for Baby Nipples/ Liquid Silicone Rubber (for Baby Feeding Products)
Model No.
LIM3900-20A/B, LIM3900-30A/B, LIM3900-40A/B, LIM3900-50A/B, LIM3900-60A/B, LIM3900-70A/B, LIM3900-15A/B
Product Description
This LSR is a platinum catalyzed, two-component, high transparence, high tear strength, liquid silicone rubber. Certified by RoHS, it is specially manufactured to produce baby nipples. Our liquid silicone rubber features excellent elastic resilience, good thermal aging resistance and anti-yellowing property. It is stable and resistant to extreme environments and temperatures from -60℃ to 230℃, while still maintaining its useful properties. Please note that the mixture of the two components has an effective operating time of five days under 23℃ condition.
Main Applications

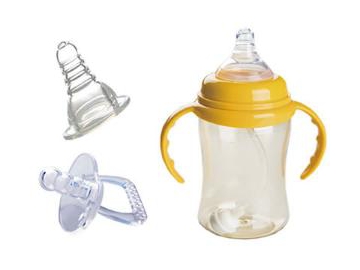

The liquid silicone rubber is ideal for making baby feeding products such as baby nipples, feeding bottles, caps of feeding bottle, baby tableware, seal rings of breast pump, baby toys, etc.
Storage
The shelf life for this product is 360 days in a room temperature of no more than 30℃. Once open, keep sealed, store in cool place and consume within seven days.
Usage
Use a static mixer to mix the two components, A and B, with a ratio of 1:1. Feed the mixture directly into an injection molding machine.
Packaging
It is packed in 20kg or 200kg barrels.
| Physical properties | Test method | Unit | LIM3900-15A/B | LIM3900-20A/B | LIM3900-30A/B | LIM3900-40A/B | LIM3900-50A/B | LIM3900-60A/B | LIM3900-70A/B |
| Appearance (Color) | Visual | Transparent | Transparent | Transparent | Transparent | Transparent | Transparent | Transparent | |
| Viscosity | DIN53019 | mPa.s | (80 ~ 90) ×104 | (60 ~ 80) ×104 | (75 ~ 100) ×104 | (75 ~ 150) ×104 | (70 ~ 90) ×104 | (70 ~ 100) ×104 | (80 ~ 90) ×104 |
| Specific gravity | D792 | 1.07 | 1.08 | 1.09 | 1.10 | 1.10 | 1.12 | 1.13 | |
| Light transmittance | % | ≥80 | ≥80 | ≥80 | ≥80 | ≥ 80 | ≥80 | ≥80 | |
| Elastic resilience | ≥ 45 | ≥ 45 | ≥45 | ≥55 | ≥58 | ≥ 65 | ≥ 60 | ||
| SHORE Hardness | D2240 | A | 15±2 | 20±2 | 30±2 | 40±2 | 50±2 | 60±2 | 68±2 |
| Tensile strength | D412 | MPa | ≥ 5.5 | ≥ 6.5 | ≥8.5 | ≥8.5 | ≥ 8.5 | ≥ 8.5 | ≥ 8.5 |
| Elongation at Break | D624B | KN/m | ≥ 9.0 | ≥ 8.0 | ≥ 15 | ≥ 27 | ≥ 30 | ≥ 30 | ≥ 32 |
| Tear strength | D412 | % | ≥ 1000 | ≥950 | ≥880 | ≥650 | ≥ 500 | ≥450 | ≥ 440 |
| Compression set | DIN53 517 22hrs @ 175 ℃ | % | ≤25 | ≤25 | ≤25 | ≤25 | ≤25 | ≤25 | ≤25 |
| Linear shrinkage | JISK 6301 | % | ≤ 2.5 | ≤ 2.5 | ≤ 2.5 | ≤2.5 | ≤ 2.5 | ≤ 2.5 | ≤ 2.5 |
Note:
The above technical properties are for reference only. For detailed molding conditions, please contact us directly.
