Edge Banding Machine (Bevel/Straight Edge), HKJ-633DJ

Edge Banding Machine (Bevel/Straight Edge), HKJ-633DJ
Edge Banding Machine (Bevel/Straight Edge), HKJ-633DJ
Edge Banding Machine (Bevel/Straight Edge), HKJ-633DJ
Edge Banding Machine (Bevel/Straight Edge), HKJ-633DJ
Edge Banding Machine (Bevel/Straight Edge), HKJ-633DJ
Edge Banding Machine (Bevel/Straight Edge), HKJ-633DJ
Edge Banding Machine (Bevel/Straight Edge), HKJ-633DJ
Edge Banding Machine (Bevel/Straight Edge), HKJ-633DJ
Edge Banding Machine (Bevel/Straight Edge), HKJ-633DJ
Edge Banding Machine (Bevel/Straight Edge), HKJ-633DJ
Edge Banding Machine (Bevel/Straight Edge), HKJ-633DJ
Edge Banding Machine (Bevel/Straight Edge), HKJ-633DJ
Edge Banding Machine (Bevel/Straight Edge), HKJ-633DJ
Request a Quote
Technical Data
Model HKJ-633DJ Bevel angle 45° (non-adjustable)
Panel width ≥120mm Feed speed (bevel edge panel) 13m/min
Panel length ≥200mm Feed speed (straight edge panel) 13-20m/min
Bevel edge panel thickness 12-25mm Power 27kw
Straight edge panel thickness 9-43mm Dimension 9600*900*1750mm
Edge tape thickness 0.8-2.0mm Air pressure 0.65Mpa
Voltage 380/220v 50Hz Weight 4200kg
Configurations

The edge banding machine is suitable for handling bevel edges of door panel, drawer panel, office table panel, etc.

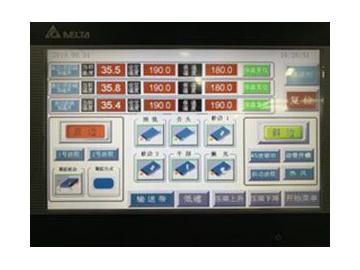

  • One-key switch
    Achieving one-key switching between bevel edge and straight edge

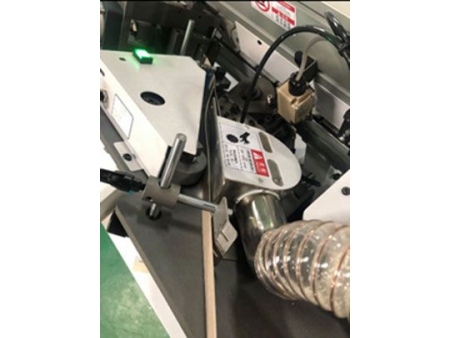

  • 45 degree milling unit
    Multiple saw blades for milling of angled edge up to 45degree, the milling unit is equipped with dust collection unit to efficiently remove dust.

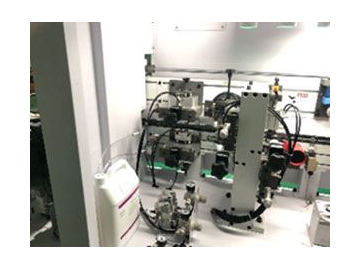

  • Gluing unit
    Simultaneously applying glue to the bevel and straight panel edges, tapes are pressed onto bevel and straight panel edges by pneumatic pressure rollers at two sides.

View More
  • Pre-milling unit
    Simultaneous adjustment for pre-milling, ensuring accurate pre-milling of both bevel edge and straight edge.

  • Edge tape grooving unit
    Equipped with pneumatic pressure pad, this unit grooves the edge tape back for better edge banding effect, the height and depth of groove position are adjustable.

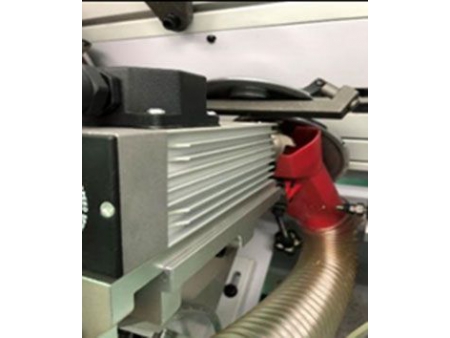

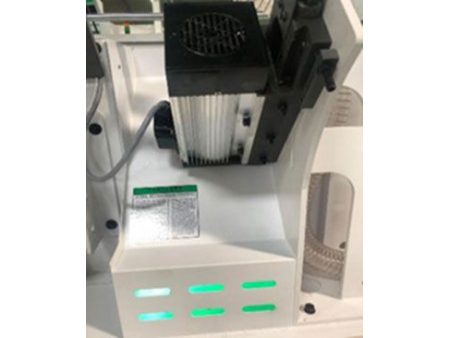

  • Trimming unit
    The trimming unit is equipped with 0.9KW high power high frequency motor and diamond cutters, ensuring effortless trimming and low noise level.

  • Corner rounding unit
    The corner rounding function enables edge banding effect more attractive.

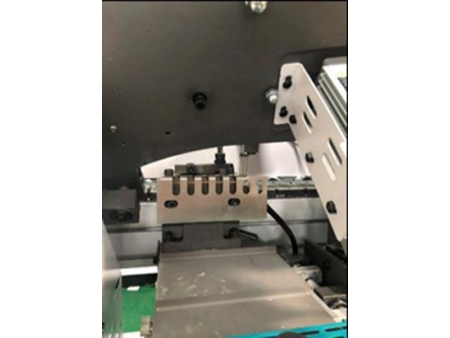

  • Scraping unit
    Specially designed for bevel edge, the scraping unit delivers precision finishing for the appearance of panels.

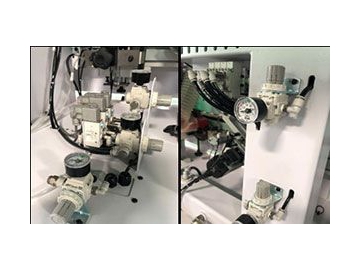

  • Pneumatic parts
    Key parts are all imported to ensure fast and stable operation.

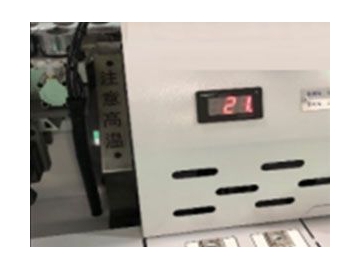

  • Heating unit
    The heating unit softens the edge tape while provides secondary heating for high gluing performance.

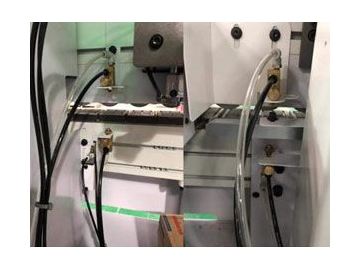

  • Cleaning unit
    Cleaning unit with automatic nozzle adjustment keeps straight or bevel edges clean, eliminating the need for manual adjustment.
