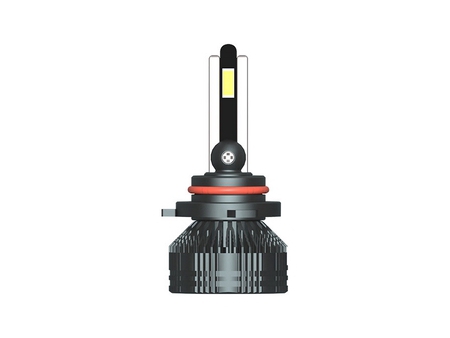

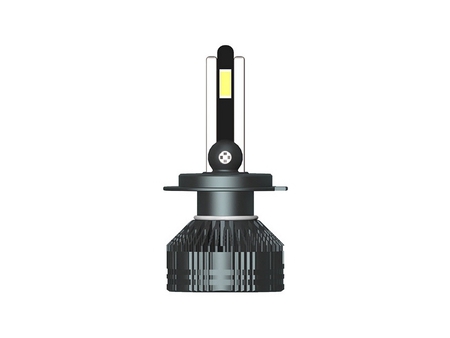

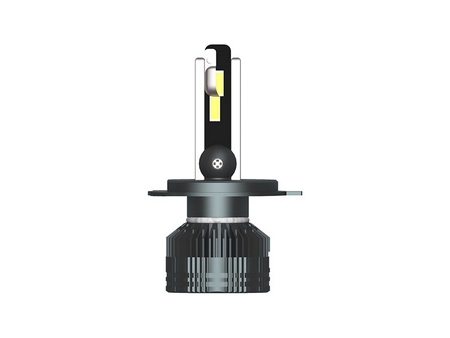

N10B Series LED Headlight Bulb
Request a Quote
Features
- The heat sink measures 32mm in diameter and 31mm in height, with a power output of 55W, ensuring optimal cooling performance.
- The bulb uses 3570 LED chips with dual superconducting heat pipes for efficient heat conduction, along with uniquely designed S-shaped cooling fins made from AL6063 material (European standard) to further improve heat dissipation.
- The 1.5mm double-sided copper base plates are tightly welded to the dual superconducting heat pipes, providing better heat transfer. The external driver and smart temperature control system offer enhanced protection for the LED chips.
- This bulb combines a sleek, patented design that is both compact and powerful. It includes EMC and decoding functions, providing advanced performance and vehicle compatibility.
Specification
| Series | N10B | ||||||
| Model | N10B H1 | N10B H4 | N10B H7 | N10B H11 | N10B 9005 | N10B 9006 | N10B 9012 |
| Voltage (V) | DC9-60 | ||||||
| Power (W) | 55 | ||||||
| Luminous Flux (lm) | 4500 | ||||||
| Color temperature (K) | 6500 | ||||||
| Driver | External driver | ||||||
| Fan | Yes | ||||||
