MIG 165SYN

Features
  • IGBT inverter, equipped with exclusive chip-RICHIP, drives powerful welding performance;
  • 3 in 1 multi-process: gas MIG, gasless MIG, and MMA, compact and portable;
  • True synergic, the wire speed and output voltage will be auto matched, voltage fine-adjustment, less spatter;
  • Stable welding at 40A output, easy spot welding on 1.0mm carbon steel and good performance on 1-6mm thick work pieces;
  • Compatible with 1kg and 5kg wire spool, recommend 0.8mm solid MIG wire, 1.0mm flux cored MIG wire;
  • Automatically selecting the right wire diameter;
  • Continuous MMA welding with 2.5/3.2 electrode, smooth arc;
  • Fan on demand, energy saving;
  • Intelligent protection: over-current, over-voltage, over heating protection;

Specifications
Item MIG 165SYN
Power voltage (V) 1 phase 220V15%
Frequency (Hz) 50/60
Rated input current (A) MIG: 23.6 (Ieff=10.6) MMA: 23 (Ieff=10.3)
Output current adjustment (A) 30-160 (MIG) 20-140 (MMA)
Output voltage range (V) 15.5-22(MIG) 20.8-25.6 (MMA)
Duty cycle (%)/ 40℃ 25%@160A /22V (MIG) 25%@140A/24.4V (MMA)
No-load voltage (V) 61
Power factor 0.73
Efficiency (%) 85
Type of wire feeder Internal
Wire feed speed (m/min) 3-10m/min
Post flow time (S) 3
Welding wire diameter (mm) 0.8/(0.9)/1.0mm
Insulation class H
Housing protection grade IP21
Welding thickness (mm) More than 0.8mm
Weight (Kg) 7kg
Overall dimension (mm) 428×211×338

Package Included

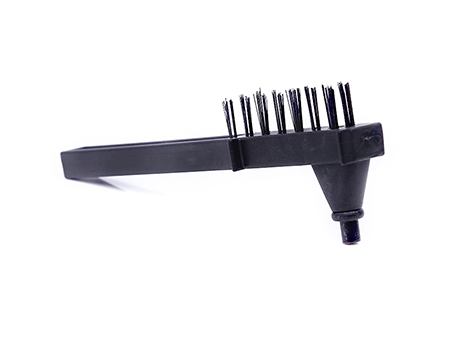

  • Steel brush hammer

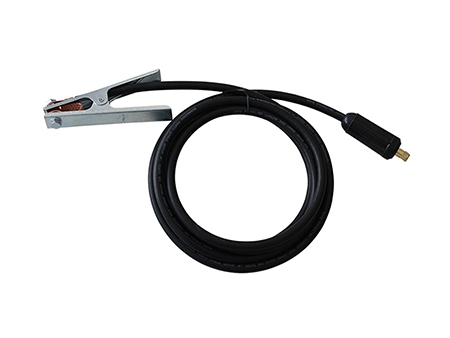

  • Earth clamp

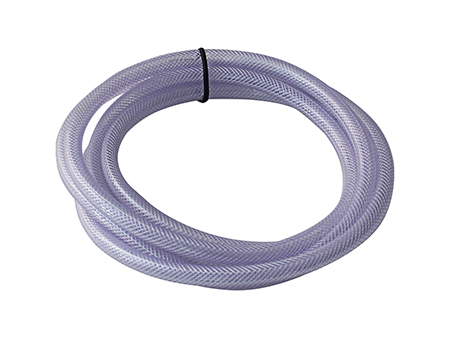

  • Gas hose

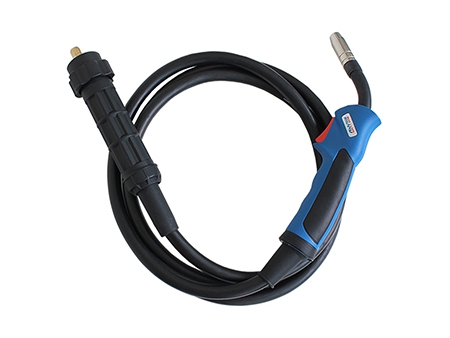

  • MIG torch
Applications
Optional Welding Accessories

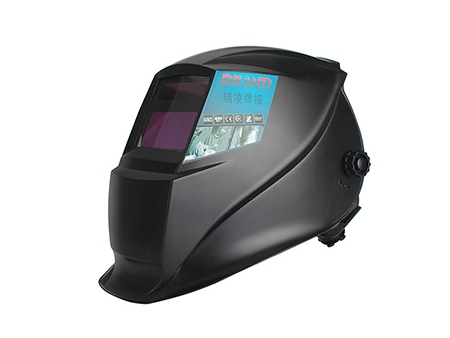

  • Auto-darkening welding helmet

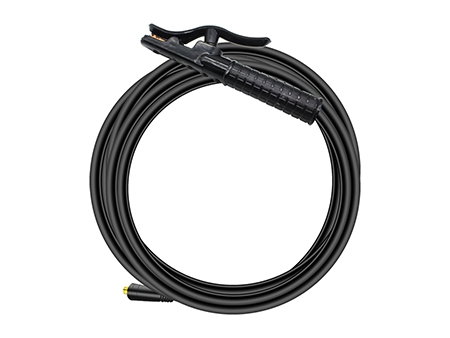

  • 1 set electrode holder
