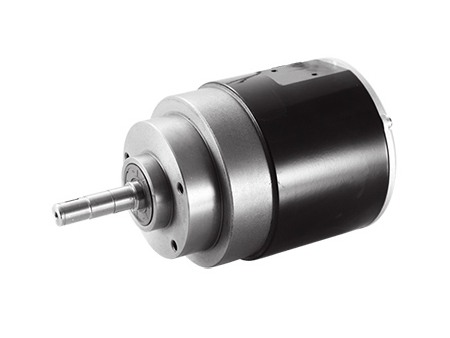

900W (3100 RPM) Horizontal Travel Drive Motor, PMDC Brushless Motor TF110AH2
Request a Quote
Website: http://motors-manufacturer.com/2-19-900w-3100-rpm-drive-motor-pmdc-brushless-motor-tf110ah2.html
Your Motion
Application: electric material handling equipment
Technical Specifications
| Rated Power (W) | 900 |
| Rated Voltage(V) | 48 |
| No-load Current(A) | ≤5.0 |
| No-load Revolution (RPM) | 3100 |
| Rated Torque (N•m) | 3.1 |
| Max Torque (N•m) | 18.0 |
| Rated Revolution (RPM) | 2750 |
| Rated Current(A) | ≤24.0 |
| Working Cycle (min.) | S2-60 |
| Insulation Class | F |
| Protection Level | IP44 |
| Length (L/mm) | 231 |
Note: we can customize any brushless DC motors according to your application requirements and working conditions.
