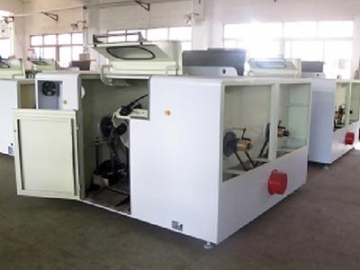

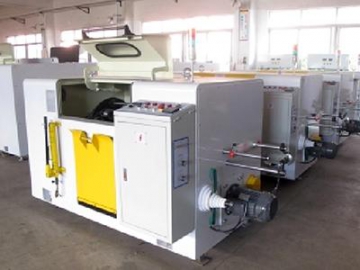

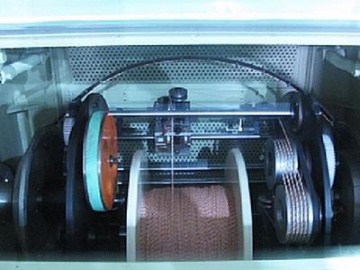

Double Twist Twinner with Horizontal Back Twister

Double Twist Twinner with Horizontal Back Twister
Double Twist Twinner with Horizontal Back Twister
Double Twist Twinner with Horizontal Back Twister
Double Twist Twinner with Horizontal Back Twister
Double Twist Twinner with Horizontal Back Twister
Double Twist Twinner with Horizontal Back Twister
Double Twist Twinner with Horizontal Back Twister
Double Twist Twinner with Horizontal Back Twister
Double Twist Twinner with Horizontal Back Twister
Request a Quote
Application

Double twist twinner with horizontal back twister is applicable for LAN cable including CAT5 cable, CAT5E cable and CAT6 cable. The suitable single line twisting materials include copper, pair-wire, flexible coppers, aluminum, etc.

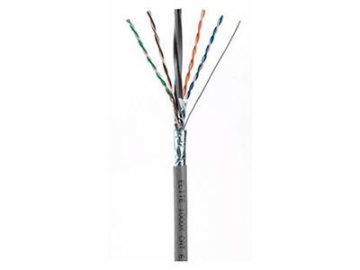

  • Effect after twisting
Twist twinner parameters
  • Core diameter: max Φ1.5mm
  • Twisting diameter: max Φ3.0mm
  • Pitch: 6-60mm
  • Rotational speed: max 2000rpm
  • Take-up tension: Magnetic powder clutch
  • Bobbin up and down: hydraulic
  • Diameter of take-up reel: ¢500MM
Back-twister parameters
  • Pay-off reel diameter: Φ500MM
  • Rotational speed: max 1500RP
  • Line diameter: max Φ1.5MM
  • Pay-off tension: 4-40N
  • Reel movement: electrical
  • Back-twist ratio: max 60% (adjustable)
Features
  • The horizontal back twister is easy to operate such as shaft installation, shaft changing and wire reeling. In addition, the user setting system is convenient.
  • Equipped with pay-off reel and reel design, convenient operation.
  • Equipped with safety control device. The operation will stop running when any single machine reports error, easy for error cause inspection.
  • The back twister pay-off and twist twinner is controlled by PLC control system to set the back-twist ratio with maximum 60%.
  • The equipment works in fully-closed situation. High efficiency and the safety of the operators is assured.
