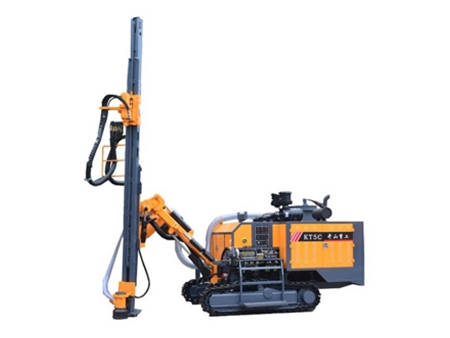

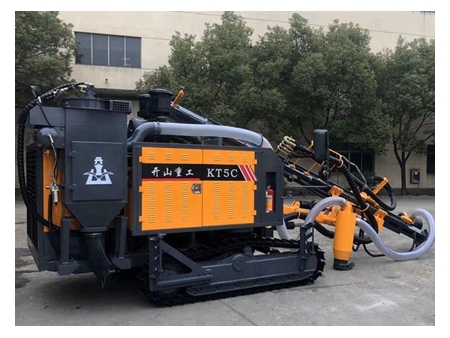

Down-the-hole drill rig for open-pit mining

This machine integrates a hydraulic long hole drilling rig and a screw air compressor. With a Yuchai engine that meets China Stage III emission standards, the drilling machine can fulfill the requirements of emissions and environmental protection. The machine has a compact structure and achieves a balance between economy and performance, with other features of being easy and safe to use and to be transported from site to site.

Technical Specifications
Model KT5C
Weight 8000kg
Dimensions 7800 ×2300 ×2500mm
Rock hardness F=6-20
Hole diameter ⌀80-105mm
Hole depth 25m
Maximum torque 1.68kN-m
Maxium push force 25kN
Tramming speed 2.5/4.0km/h
Gradeability 30°
Ground clearance 430mm
Total power 162kK
Engine YuchaiYC6J220-T303
Free air delivery of compressor 12m³/min
Discharge pressure of compressor 210 psi
Rotation speed 0-120r/min
Boom lift angle Down: 26°, up: 54°
Boom swing angle Left: 44°, right: 53°
Tilt angle 125°
Swing angle Left: 47°, right: 47°
Lateral horizontal swing angle Right: -15-97°
Frame oscillation angle Up: 10°, down: 9°
Feed length 3000mm
Feed extension 900mm
DTH hammer M30
Drilling rod ⌀64×3000mm
Dust collection Dry (hydraulic cyclonic laminar flow)
