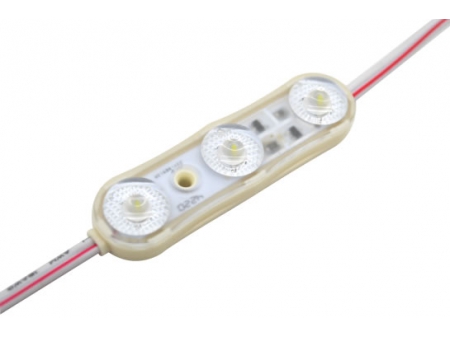

LED Module, MSX-227B

LED Module, MSX-227B
LED Module, MSX-227B
LED Module, MSX-227B
LED Module, MSX-227B
LED Module, MSX-227B
LED Module, MSX-227B
LED Module, MSX-227B
LED Module, MSX-227B
Request a Quote
  • LED type: 2835
  • IP rating: IP67
  • Beam angle: 170°
  • 5-year warranty
  • CE, RoHS, UL
Features:
  • LED modules adopt SMD2835 LEDs with high luminous efficiency up to 150lm/w, which offers low thermal resistance, spot free lighting, long lasting and good color consistency.
  • PC triple lenses with 170° viewing angle provide large and uniform light-emitting area
  • ABS plastic molded housing is waterproof and fire rate, which makes the LED module be suitable for use in indoor and outdoor environments at low and high temperatures.
  • Low voltage input of DC12V ensures high operation safety
  • Features good air tightness and an IP67 rating
Technical parameters:
Model Input voltage Power Luminous flux Color temperature LED type Beam angle Colour Number of LED modules per chain
MSX227B DC12V 1.08W/pcs 170lm 7000-8000K / 9000-12000K 2835 170° Pure white / cold white 30pcs
Other technical parameters:
Shell color LED driver Weight Working temperature Storage temperature IP rating Warranty period
white External constant voltage, built-in constant current 13g/pcs -85 -105 IP67 5 years
Installation or wiring diagram
Dimension:
Light Distribution Curve:
Connection diagram:
Packaging

Packing: 1000pcs/bag
Size: 220*300*0.075mm
Carton size: 520*370*260mm
Net weight: 12.9(1±10%)kg
Gross weight: 13.4(1±10%)kg

Notes: The above-mentioned packaging quantity and weight are only for the illustrated packaging method, which vary from the packaging method.
The above parameters are subject to change without notice.
