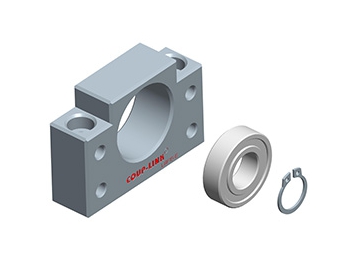

Ball Screw Support Unit, Type LWBF Supported Side

Ball Screw Support Unit, Type LWBF Supported Side
Ball Screw Support Unit, Type LWBF Supported Side
Ball Screw Support Unit, Type LWBF Supported Side
Request a Quote
Dimensions
Model d L B H b h1 B1 H1 P d1 d2 h Mass (kg)
LWBF10 8 20 70 43 35 25 36 35 52 9 14 11 0.4
LWBF12 10 20 70 43 35 25 36 35 52 9 14 11 0.35
LWBF15 15 20 80 50 40 30 41 40 60 11 14 11 0.45
LWBF20 20 26 95 58 47.5 30 56 45 75 11 17 15 0.8
LWBF25 25 30 105 68 52.5 35 66 25 85 11 - - 0.9
