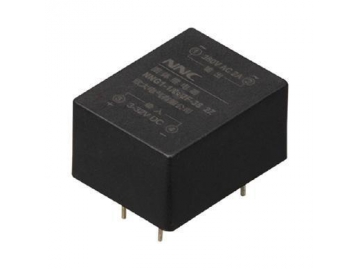

NNG1-1/032F-22,38 DC-AC Upgraded Single Phase Solid State Relay

NNG1-1/032F-22,38 DC-AC Upgraded Single Phase Solid State Relay
NNG1-1/032F-22,38 DC-AC Upgraded Single Phase Solid State Relay
NNG1-1/032F-22,38 DC-AC Upgraded Single Phase Solid State Relay
Request a Quote

The NNG1-1/032F-22, 38 DC-AC 10A-120A single phase solid state relay is used in the automatic control filed like signal light, scintillator, stage lighting control system, instrument and apparatus, medical equipment, copier, automatic washing machine, automatic fire equipment and security system, and it also can be used as the selector switch of the power capacitor which be compensated by the network power factor. In addition, the NNG1-1/032F-22, 38 DC-AC 10A-120A single phase solid state relay is widely used in the bad environment and frequent switching occasions like the chemical industry and cola industry which need prevent from explosion, dump, dust and erosion.

Model explanation
Specification of NNG1-1/032F-22,38 DC-AC 10-120A single phase solid state relay
Control voltage 032:3-32VDC
Control current 6-25mA
Connected voltage 3VDC
Turn off voltage 1VDC
Reverse voltage 32VDC
Load voltage 22:24-240VAC 38:40-440VAC
Load current 10,15,20,25,30,40,60,80,100,120A
Transient voltage 22:600VAC 38:900 VAC
On-state voltage drop AC:≤1.6VAC
On-off time AC:≤10mS
Off-state leakage current AC:≤10mA
Dielectric withstand voltage ≥2500VAC
Insulation resistance Testing in 500MΩ,500VDC
Environmental temperature -30℃~80℃
Installation style Screw installation
Relay weight 10≈90g 40A≈95G 80A≈100G
Dimension 60×45×27.5mm
Notice When the load is more than 10A, the device must install the heat sink, and when the working temperature is more than 80℃, the device must be cooled by the air fan or water.
Dimension and installation

① Dimension figure; ② Install size; ③ Wiring diagram; ④ Control power supply ⑤ Input ⑥ Ssr ⑦ Output ⑧ Load ⑨ Load power supply
