1800kg Wheel Loader
Recommended application

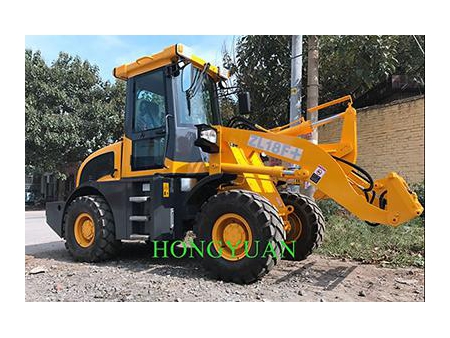

The loading weight of the ZL-18F four wheel drive loader is 1800kg. The bucket has a capacity of 1.0m3, which can be raised to the height of 2300mm in 4s under full load conditions, and the operation is flexible. Consequently, the wheel loader can be widely used in the construction of highways, mines, brick tile factories, urban construction, kilns, stone factories, prefabricated cement parts factories and other agricultural engineering as well as medium and small buildings.
The front bucket adopts the convenient tailgate design to prevent the materials from falling during work. If need to meet different jobs requirements, a fast connector can also be selected to replace a variety of loader mount attachments to carry out jobs of different functions, such as snow bucket, fork.

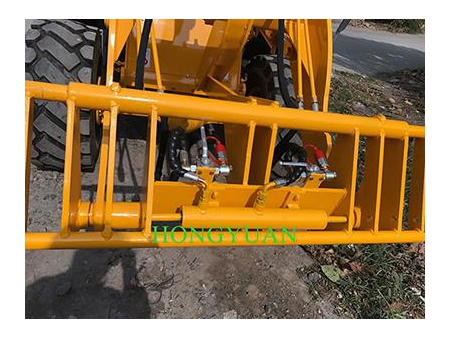

- Fast connector

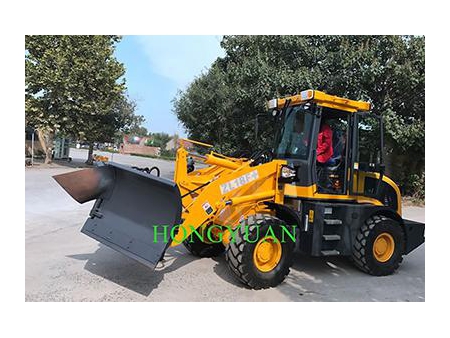

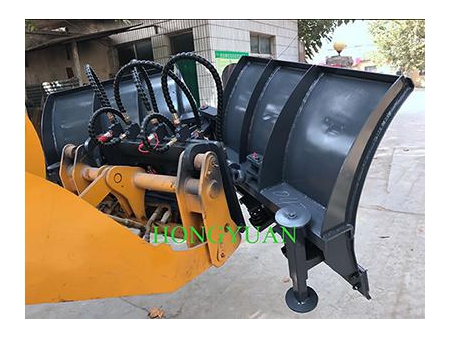

- Replace V shape snow plow blade

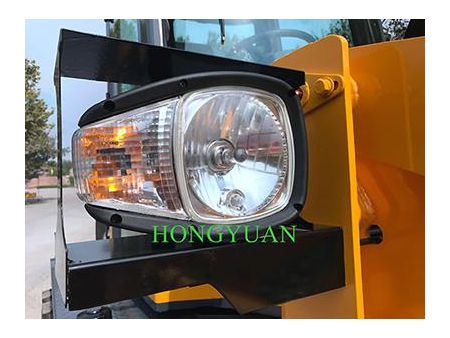

- Lights
| Rated loading weight | 1800kg |
| Rated bucket capacity | 1.0m3 |
| Rated power | 47KW |
| Rated speed | 2400rpm |
| Bucket width | 2100mm |
| Track base | 1470mm |
| Wheel base | 2160mm |
| Min. turning radius(outside of rear wheels) | 5200mm |
| Min. Ground clearance | 340mm |
| Dump height fully raised | 2800mm |
| Max. Tilt angle | 30° |
| Max. Bucket breakout, lift cylinder | 38KN |
| Maximum Speed | 25km/h |
| Operating weight | 5310kg |
| Overall dimensions(L×W×H) | 5630×2100×2850mm |
| Driving mode | Four-wheel full hydraulic drive |
| Engine model | WEICHAI 4102 |
| Engine type | In-line, vertical, water cooling , four- stroke diesel engine |
| Engine starting mode | Electric |
| Brake mode | Air assist disc brake on 4 wheels |
| Warranty | 12 months after received the goods |
| Color | According to the requirements of customers |
| Tyre type | 16/70-20 |
| Shipping port | Qingdao port, China |
| Packing details | Nude package, 1Unit/20's GP with disassembled cabin, 2Units/40's HQ |
| Delivery time | 2 5 days after confirm the order |
| Supply ability | 100 units per month |
Hongyuan Vehicle has been manufacturing super quality wheel loaders, is offering front end loaders for agricultural and heavy construction industry. By changing the associated implements on the loaders, we can offer a wide range of special purpose loaders, like sugar cane grab loader, log grapple loader, rough terrain forklift truck, snow plow, rock breaker and so on. With rich export experience and quality assurance, we provide custom need farming and construction equipment with competitive prices.
