Paper Folding Machine (4 Buckles and 1 Knife)

Paper Folding Machine (4 Buckles and 1 Knife)
Paper Folding Machine (4 Buckles and 1 Knife)
Paper Folding Machine (4 Buckles and 1 Knife)
Request a Quote
About Us: http://folding-machines.com/2-2-7-paper-folding-machine-4-buckles-and-1-knife.html

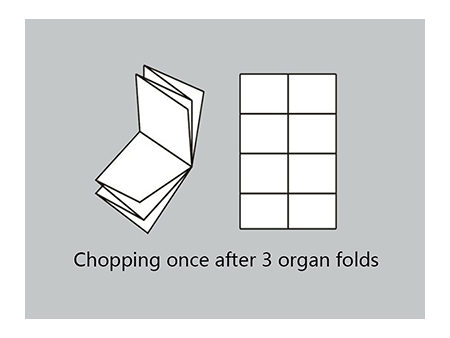

KMD’s 470T paper folding machine is composed of four buckles and an electric control knife. Paper first passes through the 4 buckles in order to achieve a 4 time parallel folding, then achieves a cross folding or half folding with the use of an electric control knife.

Parameters
  • Max feeding sheet size (W*L): 470*750mm
  • Min feeding sheet size (W*L): 50*100mm
  • Sheet range: 40-157g
  • Max folding roller speed: 180m/min
  • Max. height of paper heap: 500mm
  • Machine power: 2.7kw
  • Machine netweight: 450kg
  • Overall dimension (L*W*H): 2800*1600*1415mm
  • Max folding knife stroke: 200times/min
