Introduction

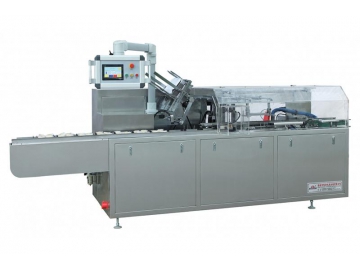

The KXZ-100B cartoning machine is suitable for objects that feature traditional, regular shapes. It packs and seals packages that fall within a specific size range, then sends them out. It is often used to pack food, pharmaceutical products, cosmetics and more.
The packaging machine will automatically fold instruction booklets, open cartons, pack objects and instruction booklets, print batch numbers, seal packages and eliminate waste, all with no need for manual labor. It is controlled using a PLC system, with every step monitored using an electro-optical tracking system.
Features- This cartoning machine will automatically feed materials, fold instruction booklets, open cartons, pack objects and instructions, seal packages and eliminate waste, all in an easy to operate manner.
- Packages without an instruction booklet or product will be eliminated, thus ensuring the quality of output products.
- This packaging machine is durable with little noise emission.
- The packaging is highly quality, giving each package an attractive appearance.
- This equipment features a wide application range, and is easy to install and debug.
- The man to machine interface is stable and easy to use.
- It has a perfect detection system and protection equipment to ensure packaging quality and operation safety.
- This packaging machine can also utilize a flip-up cover based on customer requirements. The cover is attractive and easy to use.
| Packing speed | 30-100 cartons/min | |
| Size of package | L(70-220)mm ×W(14-90)mm ×H(14-65)mm (special sizes can be customized) | |
| Cardboard requirements for packages | 250-350g/m2(up to the size of carton) | |
| Instruction | Mass requirement | 60-70g/m2 |
| Size(unfolded) | (80-250)mm X (90-170)mm | |
| Size(folded) | (1-4)(fold) | |
| Motor power | 1.5kw | |
| Power supply | 220V 50HZ | |
| Maximum noise | 80dB | |
| Minimum Air pressure | 0.6Mpa | |
| Air consumption | 120-160L/min | |
| Overall dimension | L3100×W1100×H1900mm | |
| Weight | 1500Kg |
