Flow Wrapping Machine Line Automatic Horizontal Flow Wrapper Integrated with Auto Feeder
Request a Quote
The DXD-660Z automatic horizontal flow wrapper was developed for the packaging of products with small pieces attached like sesame cakes, donuts, bagels, etc.
The DXD-660Z automatic horizontal flow wrapper is integrated with an auto feeder so that it can accomplish a series of production process. It is suitable for packaging food with attachments because it can prevent the pieces from falling off. The production efficiency of the DXD-660Z is higher than that of the DXD-300Z.
The maximum production capacity of the DXD-660Z can reach 660 bags per minute, which is twice the production capacity of the DXD-300Z. In addition, the maximum width of packaging film is 200mm
Feature
- The machine adopts fully automatic control and runs with low noise.
- The whole process of freeing, arranging, bag forming, filling and sealing is fully automatic.
- The machine adopts industrial touch screen, human-machine interface. It intuitively shows the parameter and has the menu operation, which makes operators easier to use.
- The machine has device for film auto-splice, which makes process of packing more smoothly.
- This machine adopts automatic detection and calibration, which makes the operation of packaging and cutting more precise.
- Unique design of the machine makes high-speed auto-packing of multi-piece bar products more efficient.
Technical Parameters
| Max. Production Capacity | Max. Production Capacity | 660bag/min（it is changed with the size of product） |
| Max Width of Film | 200mm | |
| Max. Dia of Film | Ø390mm | |
| Shape of products | Round bars | |
| Packing Range | Length of bag | 80-180mm |
| Dia | 15~30mm | |
| Packing Material | PET/CPP and other heat-sealable materials PET/CPP and so on | |
| Gross Power | 7Kw | |
| Power Supply | 3P/380V/50Hz | |
| Overall Dimension | 6000×1300×1600mm | |
| Gross Weight | 1.5T | |
Optional devices
- Vibrating plate or turntable (big turntable is default, small turntable is optional)

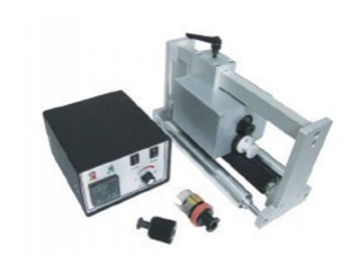

- Date Printer
- Inflatable devices
