Linear Module, Series KNK4566

Linear Module, Series KNK4566
Linear Module, Series KNK4566
Linear Module, Series KNK4566
Request a Quote
Specification:
  • Rail width: 45mm
  • Optional travel: 100mm-3800mm
  • Straightness/Curvature: ≤0.03/300mm
  • Max load of single slider: 15KG
  • Applicable motor: stepping 57, servo 400W
  • Repeat accuracy: ≤0.1mm
  • Travel: 75mm
  • Synchronous belt specification: Steel ribbon/rubber fiber band, HTD 3M, W15mm
  • Number of synchronous belt teeth: 25
PDF down Product Detail
Feature

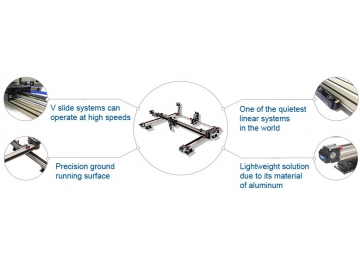

  • Adopting modular design, KNK4566 linear module can help the engineers of automation machinery and electronic control to construct multi-axis working device. The effective travel of linear module can be customized according to customers’ requirements.
  • This linear module is a lightweight solution due to its material of aluminum. It is featuring lightweight, small inertia and fast response of speed change. Besides that, it can match with stepping, servo and other motors.
  • This linear equipment is mute while working in a high speed because of its closed self-lubricating system that can reduce the rolling friction coefficient by forming oil film on the guide rod.
  • The design of these series linear modules is careful and precision. The rail and beam are integrated for easy installation. The mounting hole on the sides and bottom can help the fixation of drag chains, sensors and fixing bases as well as connecting plates and other accessories. The clearance of sliding block and guide rail can reach zero. Moreover, the linear module is equipped with tension adjustment device of synchronous belt.
