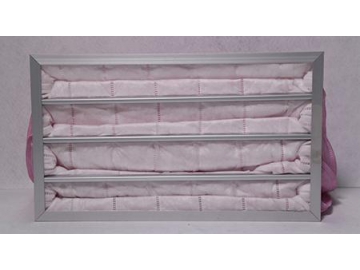

Medium efficiency air ventilation bag filters use a melt blown ultrathin non-woven fiber filter element and a V bank design structure. They commonly function as the primary air filter in centralized air conditioners and ventilation systems, or as secondary prefilter for air purifiers. This filter type is designed to have a filtering precision of 1μm and above, though this precision can be increased upon request. Most of these filters are also washable and reusable.

The unique bag design features a large filtration surface area, large dust storage capacity, low resistance and low energy consumption, thus ensuring an even air flow distribution, preventing deformation and rupture under harsh environments.

Recommended application

Commonly installed in industrial and commercial heating, air conditioning systems and functioning as a secondary stages filter

Example: offices, conference room, retail stores, stadium, airports and large-scale civilian building: centralized ventilation system for industrial factory, cleanroom and residential building.

Parameter
  • Filter efficiency: medium efficiency bag filter (colorimetry): M5 (45%), M6 (65%), F7 (85%), F8 (95%)
  • Resistance: medium efficiency bag filter F5-F6, initial resistance 60-80Pa; end resistance 250-300 Pa; medium efficiency bag filter F7-F9, initial resistance 100-130Pa; end resistance 300-400 Pa;
Model Size (mm) Bag (unit) Rated air flow quantity Initial resistance Filter area Efficiency class Outer frame color
L*W*H
HSY-DS66-M5 595*595*500 6 3600 60 3.86 M5 Aluminum alloy,
galvanized sheet,
stainless steel,
plastic,
frame areoptional
white
HSY-DS56-M5 495*595*500 5 3000 3.22
HSY-DS46-M5 395*595*500 4 2400 2.57
HSY-DS36-M5 295*595*500 3 1800 1.3
HSY-DS66-M6 595*595*500 6 3600 80 3.86 M6 Light green
HSY-DS56-M6 495*595*500 5 3000 3.22
HSY-DS46-M6 395*595*500 4 2400 2.57
HSY-DS36-M6 295*595*500 3 1800 1.3
HSY-DS66-F7 595*595*500 8 3600 110 5.58 F7 Light pink
HSY-DS56-F7 495*595*500 6 3000 4.19
HSY-DS46-F7 395*595*500 5 2400 3.49
HSY-DS36-F7 295*595*500 4 1800 2.79
HSY-DS86-F8 595*595*500 8 3600 150 5.58 F8 Light yellow
HSY-DS66-F8 495*595*500 6 3000 4.19
HSY-DS56-F8 395*595*500 5 2400 3.49
HSY-DS46-F8 295*595*500 4 1800 2.79
HSY-DS86-F9 595*595*500 8 3600 150 5.58 F9 yellow
HSY-DS66-F9 495*595*500 6 3000 4.19
HSY-DS56-F9 395*595*500 5 2400 3.49
HSY-DS46-F9 295*595*500 4 1800 2.79
