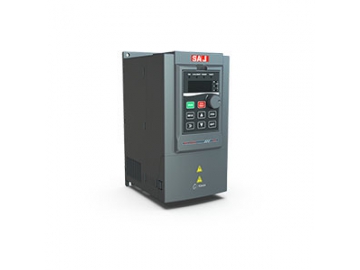

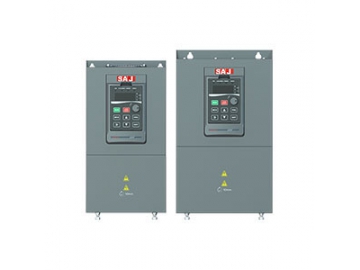

PDS33 Series Solar Pump Controller
Request a Quote
Solar pump controller is a critical component used in solar water pump system. Coupled with other components including solar cell array, combiner box and solar water pump, the solar water pump system is mainly used for water supply applications in areas where water source and power supply is not accessible.
Power Range
- 280VDC-360VDC input: 2.2kW
- 500VDC-750VDC input: 2.2-110kW
Features
- Flexibility
Compatible with IEC standard three-phase asynchronous motors
Compatible with mainstream photovoltaic modules
Switchable to grid power input - Intelligence
Adaptive MPPT (maximum power point tracking) technology, efficiency up to 99%
Automatic adjustment of water amount
Adaptive motor power - High cost-effective performance
Out-of-the-box system design
Built-in pump motor protection function
Battery-free design, suitable for various applications
Easy to maintain - Reliability
State-of-the-art technology of motor and pump drive, with 10 year experience in market application
Soft starting function solves the problem of water hammer, prolonging the service life
Built-in intelligent IGBT module, system simplification design, improving system reliability
Built-in protection function for overvoltage, overload, overheat and dry-running - Remote control
Standard RS-485 interface
Optional GPRS module for remote monitoring
Can monitor solar water pump system anytime and anywhere
Accessible to historical parameters of solar water pump system
Support PC web terminal, Android/iOS monitoring APP
Case Studies
Applicable to farmland irrigation, desert control, rural water supply, and seawater desalination in remote areas
Specifications
| PDS33 Series Product Parameters | ||
| Input Parameters | Solar array input | |
| Maximum Input Voltage (Voc)[V] | 450V DC / 800V DC | |
| Recommended MPPT Voltage Range (Vmp) | 275~380V DC / 500V DC~700V DC | |
| Recommended MPPT Power Range (KW) | 2.7~3.5 / 2.7~3.5 / 4.5~6.4 / 6.6~8.8 / 9~12 / 13.2~17.6 / 18~24 / 22.2~29.6 / 26.4～35.2 / 36～48 / 44～59.2 / 54～72 / 66～88 / 90～120 / 112～149 / 132～176 | |
| Standby AC Generator | ||
| Maximum Current (RMS)[A] | 23 / 5.8 / 10.5 / 14.6 / 20.5 / 26 / 35 / 38.5 / 46.5 / 62 / 76 / 92 / 113 / 157 / 180 / 214 | |
| Output Parameters | Rated Output Power[KW] | 2.2 / 2.2 / 4 / 5.5 / 7.5 / 11 / 15 / 18.5 / 22 / 30 / 37 / 45 / 55 / 75 / 93 / 110 |
| Rated Output Voltage[V] | 220V AC（±15%）Three phase / 380V AC(±15%) Three phase | |
| Maximum Current (RMS)[A] | 9.6 / 5.1 / 9 / 13 / 17 / 25 / 32 / 37 / 46.5 / 62 / 76 / 92 / 112 / 150 / 176 / 210 | |
| Output Frequency | 0-50Hz/60Hz | |
| Protection | Lightning Protection | Built-in |
| Overvoltage Protection | Built-in | |
| Undervoltage Protection | Built-in | |
| Motor Stuck Protection | Built-in | |
| Output Phase Loss Protection | Built-in | |
| Short Circuit Protection | Built-in | |
| Overheating Protection | Built-in | |
| Dry Run Protection | Built-in | |
| Communication | RS-485 Communication Interface | Standard RS 485, Modbus protocol |
| General Parameters | Working Temperature Range | -20℃～ 60℃; >45℃, deloading operation |
| Cooling Method | Forced air cooling | |
| Allowable Ambient Humidity | ≦95%RH | |
| Standard Warranty (monthly) | 18 | |
| Certification Standards | IEC/EN 61800-5-1,IEC/EN 61800-2:2004,IEC/EN 61800-3:2004,CE | |
| Models | PDS33-2S2R2-E / PDS33-4T2R2-E / PDS33-4T004-E / PDS33-4T5R5-E / PDS33-4T7R5-E / PDS33-4T011-E / PDS33-4T015-E / PDS33-4T18R5-E / PDS33-4T022-E / PDS33-4T030-E / PDS33-4T037-E / PDS33-4T045-E / PDS33-4T055-E / PDS33-4T075-E /PDS33-4T093-E / PDS33-4T110-E | |
| Standby AC Generator | Input Voltage | 220V AC（±15%）Single Phase / 380V AC(±15%) Three Phase |
| Generator Capacity [kVA] | 4 / 4 / 5.9 / 8.9 / 11 / 17 / 21 / 24 / 30 / 40 / 57 / 69 / 85 / 114 / 134 / 160 | |
Model
| No. | Model | Description | ||
| 1 | PDS33-2S2R2-E | Single phase 220V(±15%) AC input, or 275-380V DC input, rated power three phase 220V(±15%) AC output, 2.2KW | ||
| 2 | PDS33-4T2R2-E | Three phase 380V(±15%) AC input, or 500-750V DC input, rated power three phase 380V(±15%) AC output, 2.2KW | ||
| 3 | PDS33-4T004-E | Three phase 380V(±15%) AC input, or 500-750V DC input, rated power three phase 380V(±15%) AC output, 3.7KW | ||
| 4 | PDS33-4T5R5-E | Three phase 380V(±15%) AC input, or 500-750V DC input, rated power three phase 380V(±15%) AC output, 5.5KW | ||
| 5 | PDS33-4T7R5-E | Three phase 380V(±15%) AC input, or 500-750V DC input, rated power three phase 380V(±15%) AC output, 7.5KW | ||
| 6 | PDS33-4T011-E | Three phase 380V(±15%) AC input, or 500-750V DC input, rated power three phase 380V(±15%) AC output, 11KW | ||
| 7 | PDS33-4T015-E | Three phase 380V(±15%) AC input, or 500-750V DC input, rated power three phase 380V(±15%) AC output, 15KW | ||
| 8 | PDS33-4T18R5-E | Three phase 380V(±15%) AC input, or 500-750V DC input, rated power three phase 380V(±15%) AC output, 18.5KW | ||
| 9 | PDS33-4T022-E | Three phase 380V(±15%) AC input, or 500-750V DC input, rated power three phase 380V(±15%) AC output, 22KW | ||
| 10 | PDS33-4T030-E | Three phase 380V(±15%) AC input, or 500-750V DC input, rated power three phase 380V(±15%) AC output, 30KW | ||
| 11 | PDS33-4T037-E | Three phase 380V(±15%) AC input, or 500-750V DC input, rated power three phase 380V(±15%) AC output, 37KW | ||
| 12 | PDS33-4T045-E | Three phase 380V(±15%) AC input, or 500-750V DC input, rated power three phase 380V(±15%) AC output, 45KW | ||
| 13 | PDS33-4T055-E | Three phase 380V(±15%) AC input, or 500-750V DC input, rated power three phase 380V(±15%) AC output, 55KW | ||
| 14 | PDS33-4T075-E | Three phase 380V(±15%) AC input, or 500-750V DC input, rated power three phase 380V(±15%) AC output, 75KW | ||
| 15 | PDS33-4T093-E | Three phase 380V(±15%) AC input, or 500-750V DC input, rated power three phase 380V(±15%) AC output, 93KW | ||
| 16 | PDS33-4T110-E | Three phase 380V(±15%) AC input, or 500-750V DC input, rated power three phase 380V(±15%) AC output, 110KW | ||
