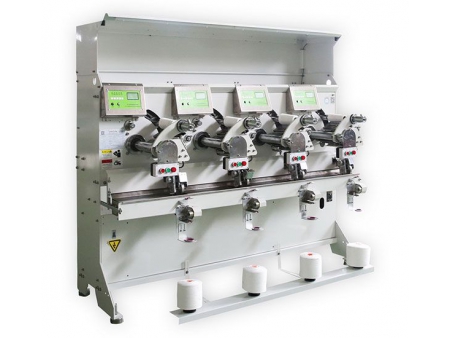

GH019-SY Semi-automatic King Spool Thread Winding Machine

GH019-SY Semi-automatic high-speed king spool thread winding machine is applied to winding the sewing threads, embroidery threads, nylon threads, high tenacity sewing threads and so on, which produces a 4-inch king spool package.

Main specifications
Model GH019-SY
Shape formation King spool
Tube angle
Max. winding outside diameter Φ115mm
Spindle number 4
Max. linear speed 1000 m/min
Pattern round number 3~4
Winder parameter table on the top board
Parameter No. Name Value
0 Password 0000~99999
Param-value
1 Full spool length 0~15000 m
2 Winding linear speed 200~1000 m/min
3 Oil wheel speed ratio 30~2000
6 Winding initial tension 0~100%
7 Winding end tension 0~100%
8 Yarn-detector state 0.0~9999″
9 Empty spool position confirmation Computer test value
10 Fixed block position confirmation Computer test value
11 Length correction coefficient 0.800~1.200
Features
  • Computer-based yarn length measurement
    Non-contact yarn broken detector is sensitive.
    Computer-based yarn length automatic measuring system comes with an accuracy of ±0.5%.
    Automatic control of winding linear speed is flexibly set within 200-1000 m/min.
  • Grooved drum yarn guide system offers fast speed and low noise.
    Grooved drum is manufactured with special hard material and is treated by hardening and polishing, being smooth and wear-resistant and having no damage to the yarn.
  • Self-lubrication system
    Pump-based cycling-type oiling device allows for the setting of oil wheel speed ratio, ensuring uniform oiling combined with the constant linear speed. Each spindle is always kept at full oil level. Each oil wheel is configured with a filter to prevent oil spray and oil waste. Large return chute and oil deflector block and filter the cotton and return oil generated during the production, without polluting the ground. Movable filter screen is easy to clean.
  • LED screen is simple to operate
  • Oil tank features large capacity, and takes small space. Our semi-automatic winding machine comes with fast speed, high productivity and higher efficiency than traditional winding machines.
Advantages
  • Stainless steel screw
  • Full series of imported bearings
  • Japan Panasonic converter
  • Imported Samsung drive belt
