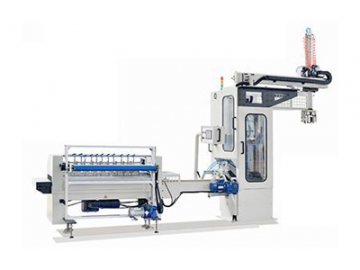

The transfer system is designed to connect the slitter and welder for an automatic material collection and feeding. It effectively reduces labor costs and improves productivity and is suitable for a wide range of can sizes.

Features
  • The transfer system features a human to machine interface, a PLC system, servo system, and digital control.

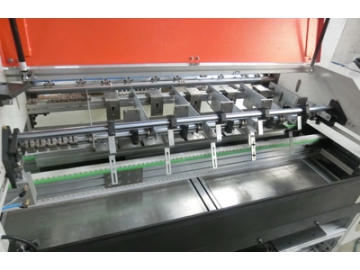

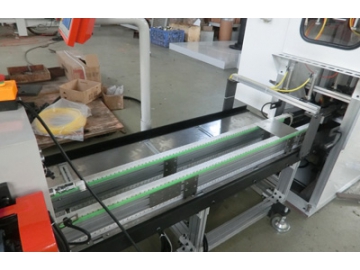

  • The clean nylon conveyor chain effectively protects can bodies against oil pollution.
  • The guide rail, bearing, electrical parts and pneumatic components are all supplied from prominent international brands.
  • This transfer system has two transfer methods: linear and right-angle. Users can choose which is needed according to their factory needs.
Technical Specifications
Models BT-1 BT-2 BT-3
Can inner diameter range Φ99~Φ153mm Φ52~Φ85mm Φ180~Φ380mm
Height range 65~265mm 50~220mm 100~550mm
Production output 300pieces/min 1000pieces/min 100pieces/min
Electrical mains AC380V, 50Hz, 2.5KW AC380V, 50Hz, 5KW
Air pressure & consumption 0.5MPa, 20L/min
