The MK-388KM vertical form fill seal machine uses ultrasonic sealing to avoid damaging non-woven fabric materials. With the use of a cup filler as the weighing device, the MK-388KM is used to package fine and uniform granules such as a variety of active carbon and desiccants, and is ideal for ration packaging of single products and single fill weights.
Bag materials

Non-woven fabric

Packaging styles

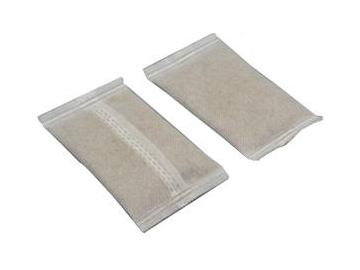

  • Back seam bag

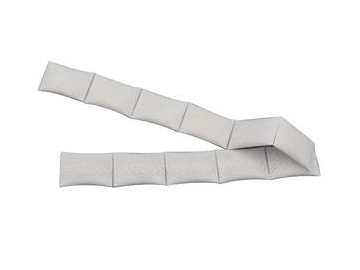

  • Strip sachets
Parameters
  • Type: MK-388KM
  • Packing speed: 30-60bags/min
  • Bag size: L:40-200mm W:40-150mm
  • Measuring range: 1-500ml (depending packaging products)
  • Max film width: 320mm
  • Sealing type: back seal
  • Power source: 1350W/ 220V、380V/ 50-60Hz
  • Weight: 400kg
  • Air consumption: 0.4 m3/min
  • Overall size: L1200* W900* H1900mm
Structural drawing
